0492142 331400 Device Mechanical tool

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For determining the installation dimension of the drive bevel gear in the rear axle differential (also E36/3 and E36/7)

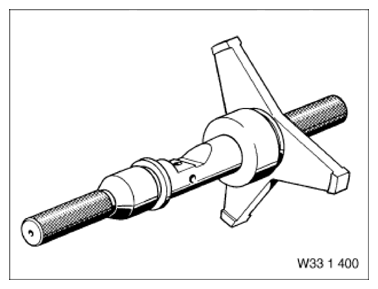

Fig 1: Identifying Device (0492142)

Courtesy of BMW OF NORTH AMERICA, INC.
