0492113 331350 Device AM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For removing and installing outer rings of taper roller bearings

Consisting of:

1 = 0492114 Shaped part
NOTE: (Shaped part)
2 = 0492115 Spindle
NOTE: (Spindle, short)

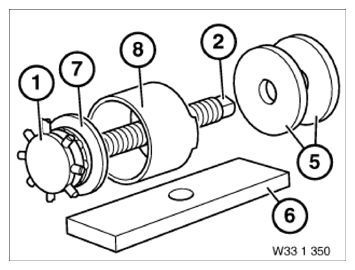

Fig 1: Identifying Device (0492113)
Courtesy of BMW OF NORTH AMERICA, INC.
4 = 0492116 Nut
5 = 0492117 Washer
NOTE: (Installation washer (2 pieces))
6 = 0492118 Bridge
NOTE: (Support bridge)
7 = 0492119 Washer
NOTE: (Thrust washer)
8 = 0492120 Holding sleeve
NOTE: (Pressure sleeve) Can no longer be ordered separately. Only available as part of set 11 5 330 = 83 30 0 495 127.
