Storage Location

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

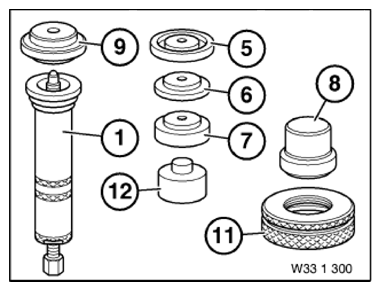

Fig 1: Identifying Extractor (0492096)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0492097 Connector
NOTE: (Basic body) For transmissions S5D 260Z, S5D 310Z and S5D 320Z;Discontinued, only available via complete tool
2 = 0492098 Washer
NOTE: (Disc) Replaced by 33 1 311. (0 492 107)
3 = 0492099 Washer
NOTE: (Disc) Replaced by 33 1 311. (0 492 107)
4 = 0492100 Washer
NOTE: (Disc) Replaced by 33 1 311. (0 492 107)
5 = 0492101 Synchronizing key
NOTE: (Thrust piece (old)) Discontinued, only available via complete tool
6 = 0492102 Synchronizing key
7 = 0492103 Synchronizing key
NOTE: Not available individually. Only via complete tool set
8 = 0492104 Synchronizing key
9 = 0492105 Synchronizing key
NOTE: For rear axle differential and for installing the camshaft sprocket on the crankshaft (M70) Discontinued, only available via complete tool
1 = 0492107 Washer
NOTE: (Disc) Discontinued, only available via complete tool
2 = 0492108 Synchronizing key
NOTE: For pulling the bearing inner race off the drive flange - Series: E36/5 Discontinued, only available via complete tool
