Storage Location

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2018 BMW M6, 2018 BMW 650i xDrive, 2018 BMW 650i, 2018 BMW 640i xDrive, and 2018 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

C17

C18

Consisting of:

3 = 0494631 Washer

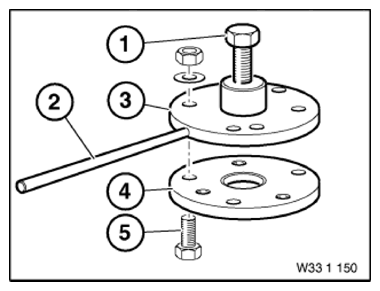

Fig 1: Identifying Device (0492083)
Courtesy of BMW OF NORTH AMERICA, INC.
4 = 0494872 Plate
NOTE: (adapter plate) Transmission: GS6-57DZ, GS6-53BZ (G transmission) GS6-51DZ, GS6-51BZ (H transmission) Deletion, only available via tool set
5 = 0494873 Screw
NOTE: (countersunk screws M10x30 (3 x)) Transmission: GS6-57DZ, GS6-53BZ (G transmission) GS6-51DZ, GS6-51BZ (H transmission) Deletion, only available via tool set
1 = 0493265 Spindle
NOTE: Discontinued, can only be ordered using complete tool
2 = 0493266 Mandrel
NOTE: Discontinued, can only be ordered using complete tool
