64 22 190 Removing and installing/replacing fresh-air grille in rear of car: Procedure

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Lever out storage box (1) with special tool 00 9 340 and remove.

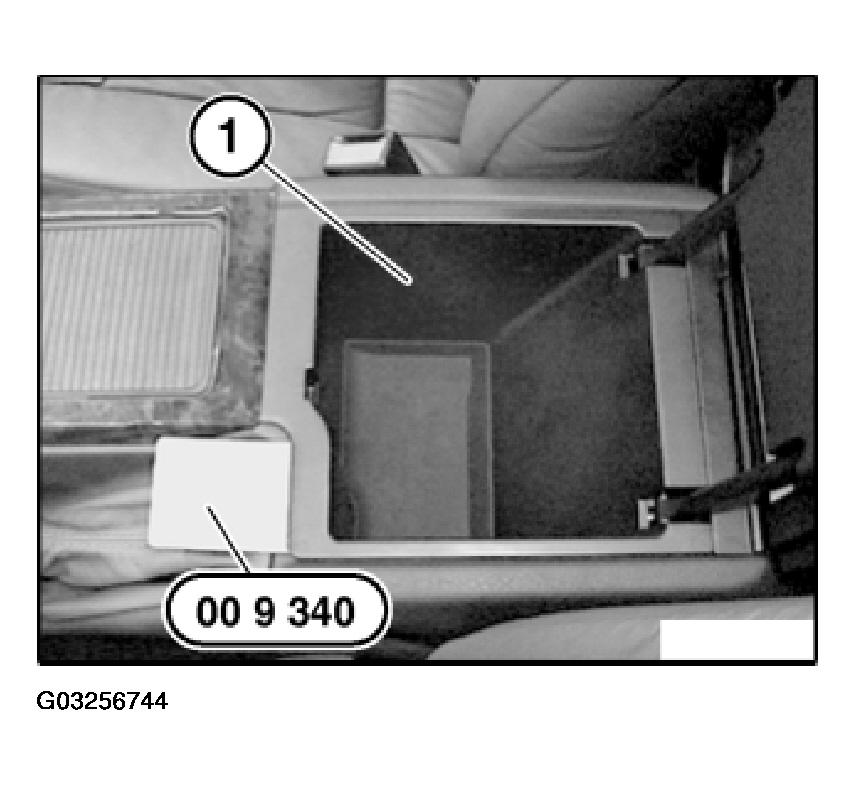

Fig 1: Removing Storage Box

G03256744

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

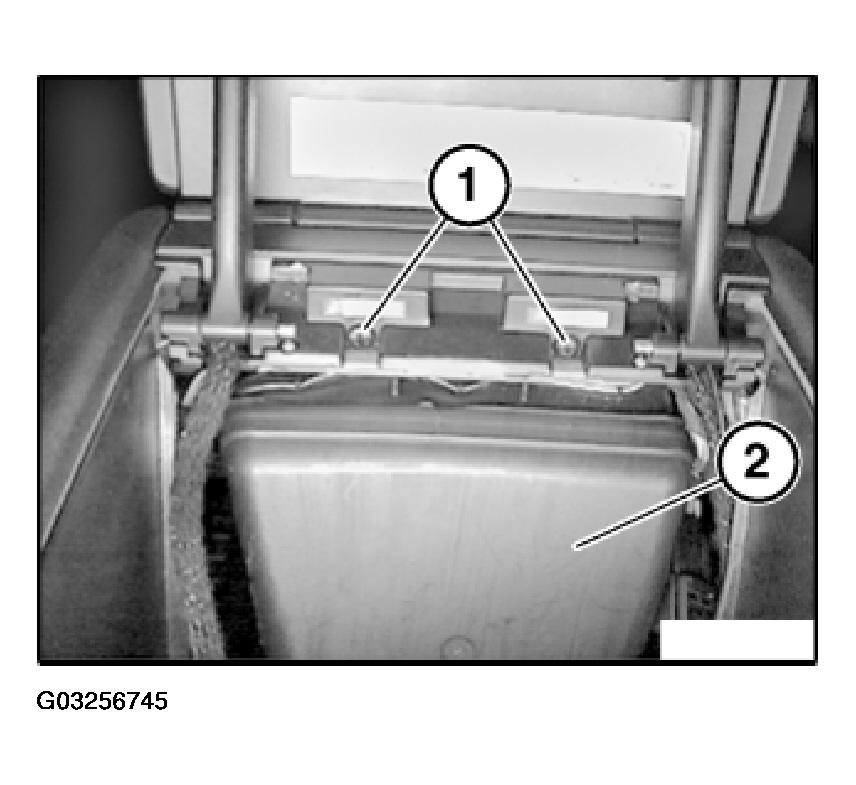

Fig 2: Removing Air Duct Screws

G03256745

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure that air duct (2) is correctly seated.

Pull out fresh-air grill (1) in direction of arrow.

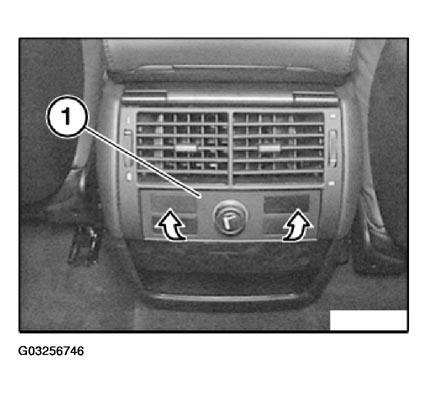

Fig 3: Removing Rear Fresh-Air Grill

G03256746

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Snap journals (1) into place in openings (2).

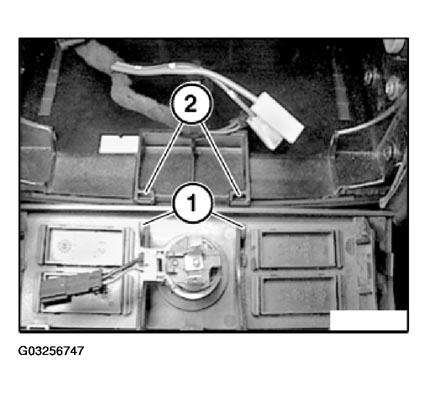

Fig 4: Installing Snap Journals

G03256747

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1).

If necessary, disconnect plug connections on switch for seat heating.

Remove fresh air grill (2).

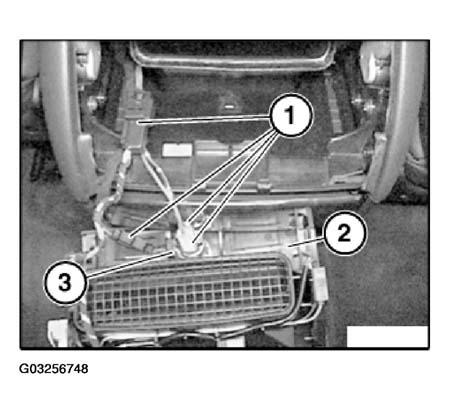

Fig 5: Removing Fresh Air Grill

G03256748

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unclip cigarette lighter (3).

If necessary, unclip switch for seat heating.
