63 21 183 Removing and installing/replacing left or right rear light (in rear lid lower section)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Lever out insert (1) in rear lid lower section panel in direction of arrow and remove.

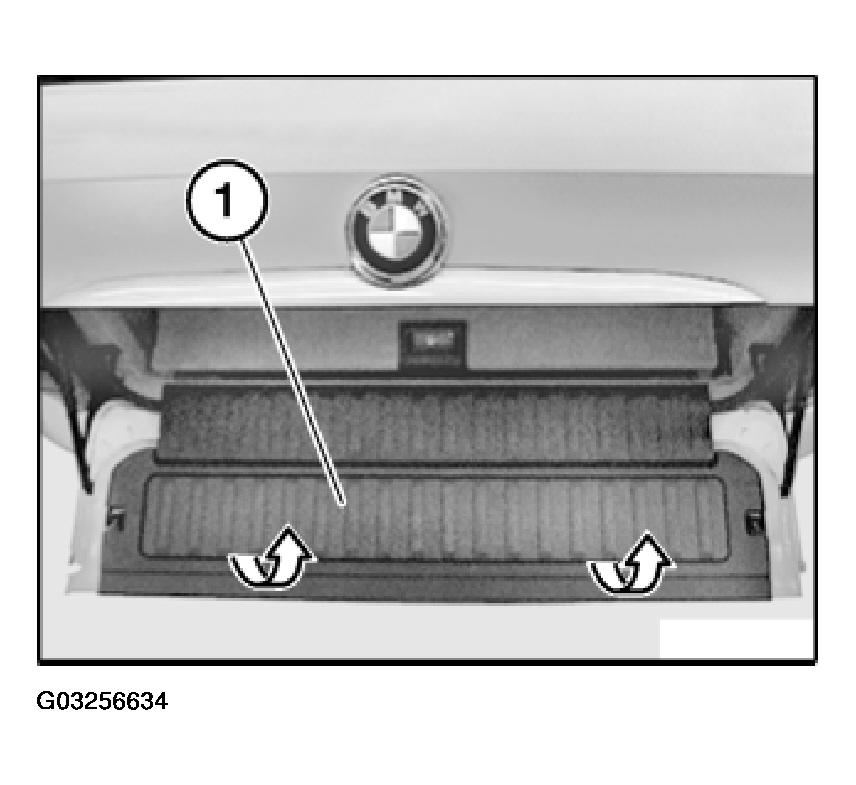

Fig 1: Removing Rear Lid Lower Section Insert

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure rear light against falling out.

Disconnect plug connection (1).

Release screws (2) and remove rear light.

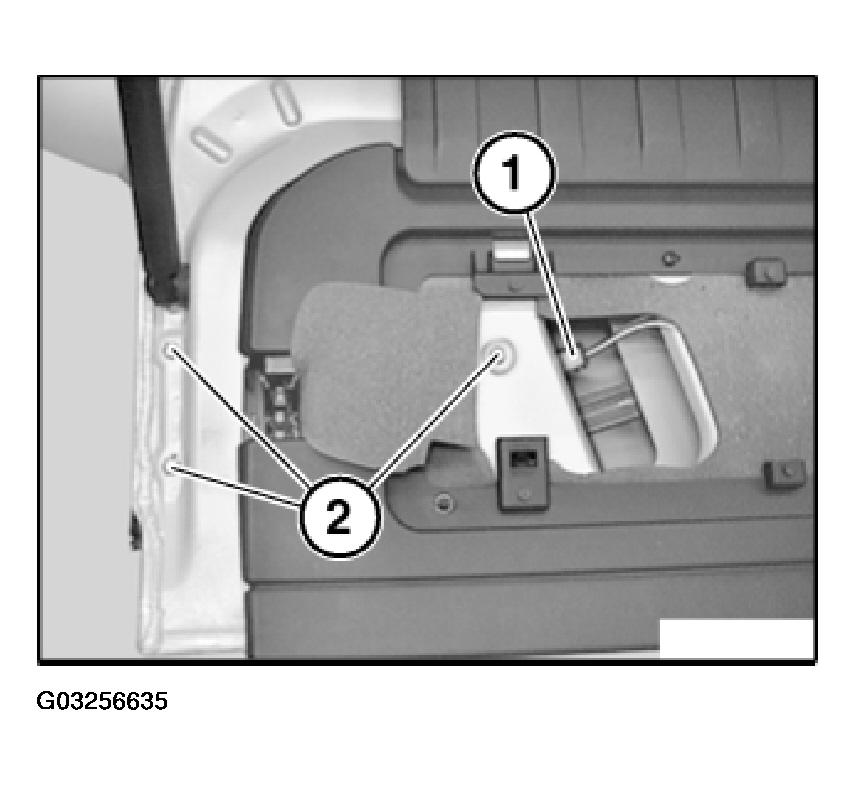

Fig 2: Removing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace tail light seal.
