63 99 140 Replacing bulb for side marker lamp, front left

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights).

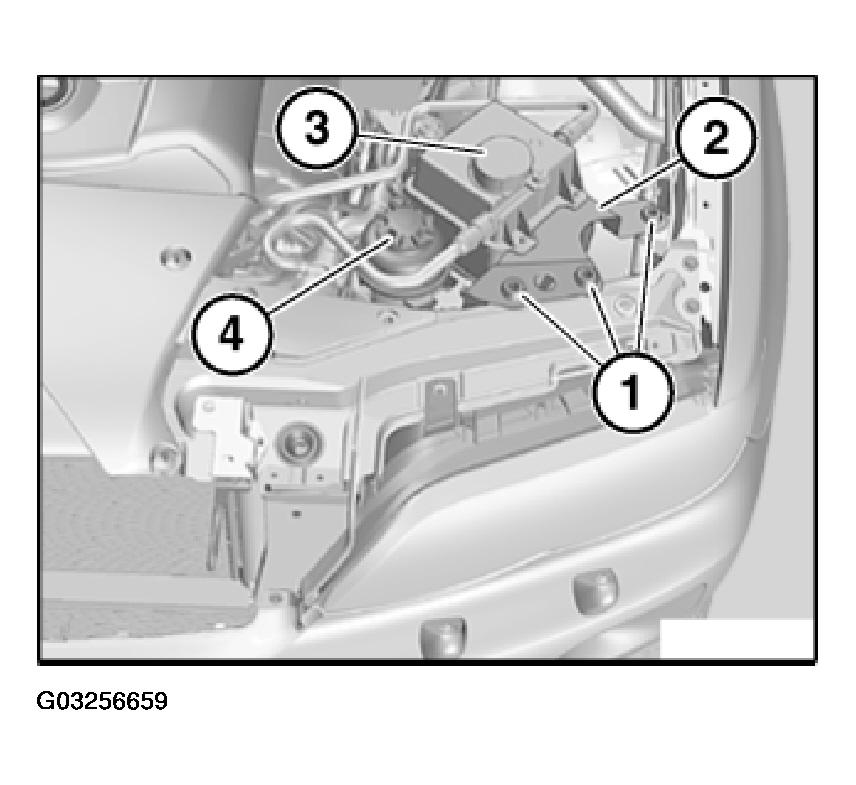

Release screws (1).

NOTE: Make sure cover caps (3) and (4) are firmly seated.

Lay equipment carrier (2) to one side.

Fig 1: Moving Equipment Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

All from 10/2003:

Press catch (1).

Fold back cover (2) and remove.

Fig 2: Folding Back Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal of cover (2) is correctly seated.

Disconnect plug connection (1).

Turn bulb for side marker lamp (2) in direction of arrow and remove.

Fig 3: Removing Side Marker Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure sealing ring is correctly seated.

All:

Installation:

Note type of bulb, refer to 63 12 HEADLIGHTS, HEADLIGHT ASSEMBLY E53 .
