63 31 023 Removing and installing/replacing footwell light (on floor trim panel, rear)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Lever out lens cover (1) on opening in direction of arrow.

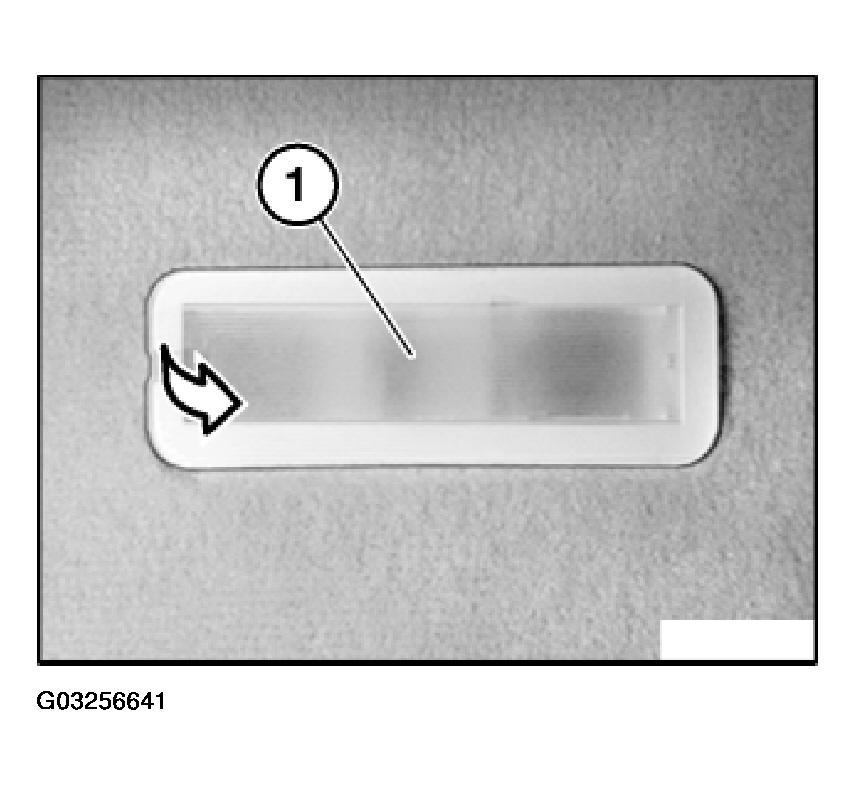

Fig 1: Levering Out Floor Trim Panel Footwell Light Lens Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out bulb (1).

NOTE: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.
Note type of bulb.

Release nuts (2) and remove footwell light (3).

Disconnect plug connection.

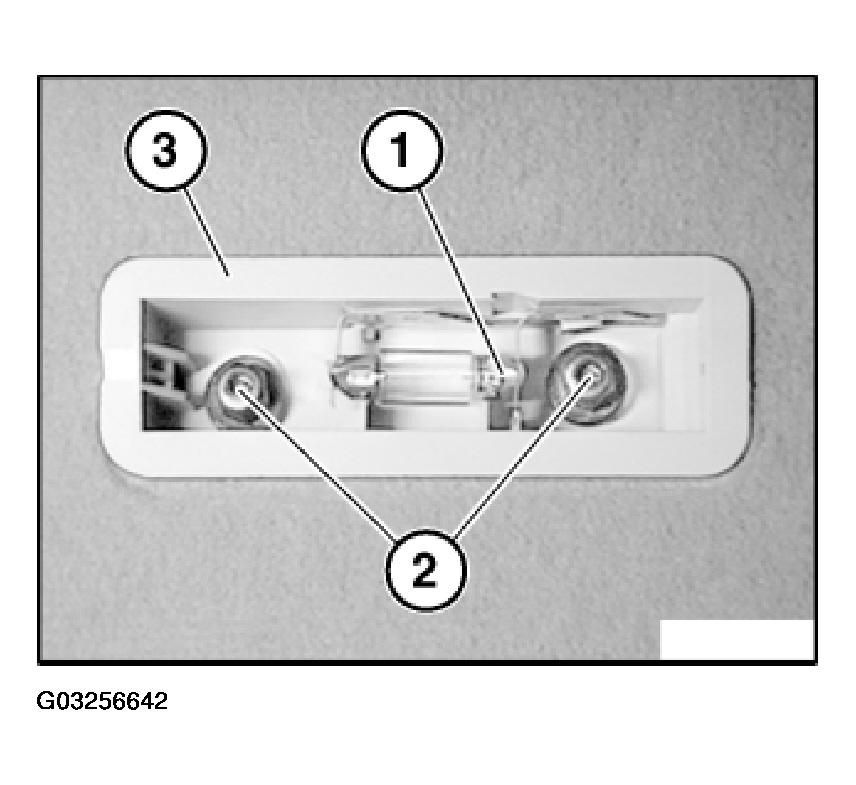

Fig 2: Removing Floor Trim Panel Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.
