63 12 870 Replacing ignition unit for left xenon headlight (from 10/2003)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release screws (1).

NOTE: Make sure cover caps (3) and (4) are firmly seated.

Lay equipment carrier (2) to one side.

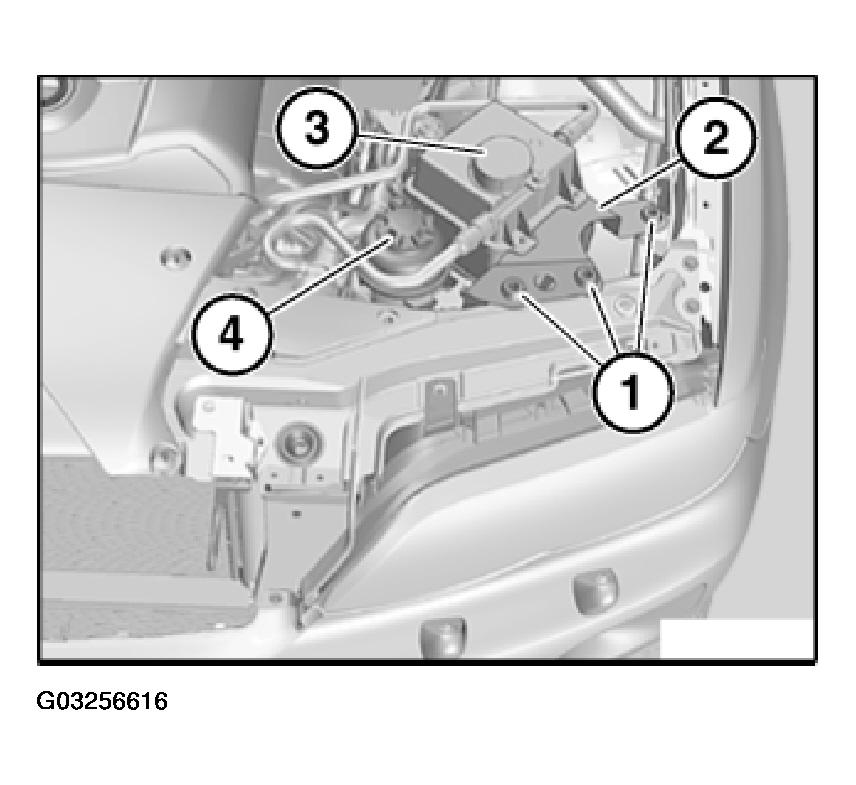

Fig 1: Moving Equipment Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove cover (2) in direction of arrow.

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal of cover (2) is correctly seated.

Disconnect plug connection (1) in direction of arrow.

Turn ignition unit for xenon headlight (2) in direction of arrow and remove.

Fig 3: Removing Xenon Headlight Ignition Unit

Courtesy of BMW OF NORTH AMERICA, INC.
