63 17 060 Removing and installing left or right fog lamp (from 10/2003)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim.

Release screws (1).

Pull out fog lamp (2), unlock and disconnect plug connection.

Set fog lamp (2) down.

Installation:

Feed guide (3) of fog lamp (2) correctly into associated fixture.

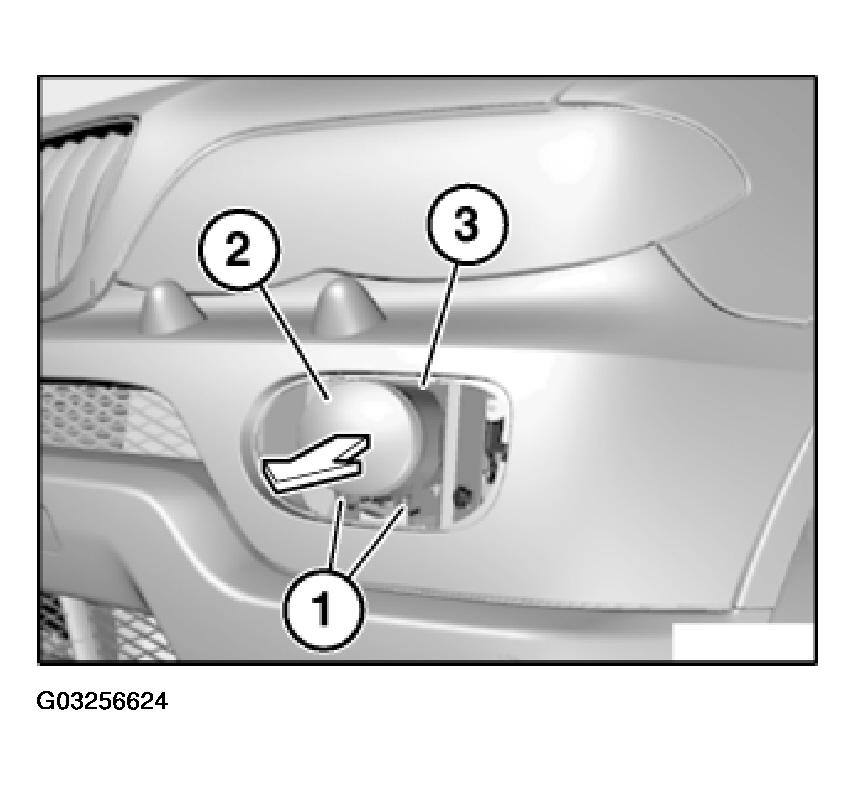

Fig 1: Removing Fog Lamp (Models From 10/2003)

Courtesy of BMW OF NORTH AMERICA, INC.
