62 21 000 Removing and installing complete instrument carrier
WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Extend steering column completely and set in downward position.

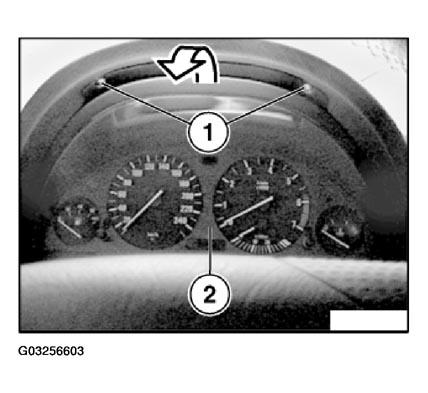

Loosen screws (1).
Fold down instrument carrier (2) and remove.
Disconnect plug connections and remove instrument carrier (2).
Courtesy of BMW OF NORTH AMERICA, INC.
