22 31 050 Replacing cross-member for transmission mounting (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE rear underbody protection.

Support transmission with hydraulic jack.

Release screws (1).

Tightening torque: 22 32 3AZ .

Unfasten screws (2).

Tightening torque: 22 32 4AZ .

Remove cross member.

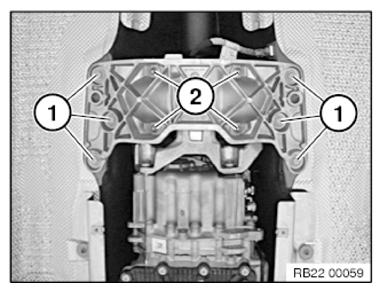

Fig 1: Identifying Cross Member Screws

Courtesy of BMW OF NORTH AMERICA, INC.
