22 32 050 Replacing cross member for transmission mounting (N55 Hybrid)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: High-voltage system - danger to life!

WARNING: The following points must be strictly observed prior to starting work:

Disconnect HIGH-VOLTAGE SYSTEM FROM POWER
Observe SAFETY INFORMATION for handling hybrid cars

Necessary preliminary tasks:

DISCONNECT high-voltage system from power
Disconnect BATTERY
Remove rear UNDERBODY PROTECTION
Support transmission with jack.

Release lid (1).

Fig 1: Removing Lid

G09918797

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) from positive battery cable (2).

Tightening torque 12 36 5AZ .

Release positive battery cable.

Fig 2: Identifying Nut From Positive Battery Cable

G09918798

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (1) and bolts (2).

Remove gearbox cross member (3).

Tightening torque 22 32 3/4AZ .

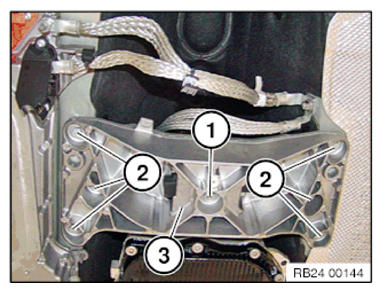

Fig 3: Identifying Gearbox Cross Member, Nut And Bolts

G09918799

Courtesy of BMW OF NORTH AMERICA, INC.
