22 32 050 Replacing cross member for transmission mounting (N20)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear UNDERBODY PROTECTION .
- Support transmission with lifter.

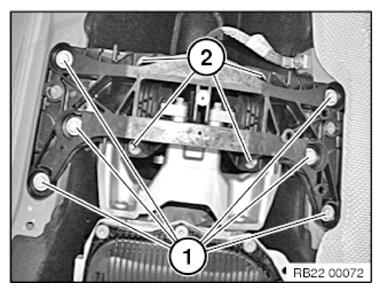

Release screws (1).
Tightening torque 22 32 3AZ .
Undo screws (2).
Tightening torque 22 32 4AZ .
Remove transmission cross member.
