28 50 001 Manual emergency release of transmission lock (GS7D36SG) S63
WARNING: This page is about a different car, the 2016 BMW M5, 2015 BMW M5, 2014 BMW M5, and 2013 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
In the event of a power supply interruption, e.g. flat battery or electrical fault, the transmission lock must be manually released, otherwise the wheel will be locked and the vehicle cannot be moved.
IMPORTANT:
Secure vehicle with appropriate means/equipment against rolling off. (e.g. chocks, parking brake).
Press the brake pedal when manually releasing the transmission lock.
Press the brake pedal when manually releasing the transmission lock.
Fold the cup holder cover open.

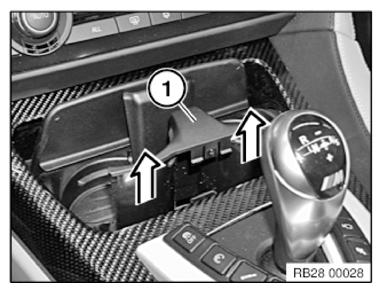

Carefully pull out cup holder insert in an upwards direction.
Installation note:
Check correct installation of cup holder insert.
Unlock transmission:

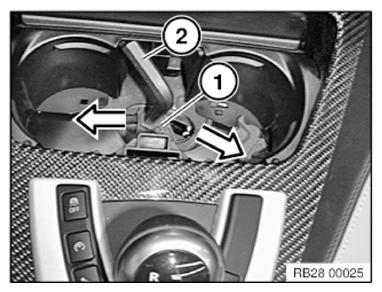

Move the release lever (1) to the right using the SW10 hexagon socket wrench (2).
NOTE:
After successful unlocking
, the transmission position (N) is shown in the instrument cluster and gearshift lever.
Unlock transmission:
To lock, move the release lever (1) to the left up to the limit position using the SW10 hexagon socket wrench (2).
- Press brake pedal.
- Start engine.
- Switch gearshift lever to transmission position (D/S).
- Switch gearshift lever to transmission position (N).
- Stop engine.
- Transmission is in park (P).
