24 13 015 Replacing Output Flange Radial Shaft Seal (GA8HP45Z) AWD

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove TRANSFER BOX .

Drive a hole into radial shaft seal (1) using a center punch.

IMPORTANT: Do not use a drill as swarf may result in transmission malfunction.

Thread special tool 23 0 490 into radial shaft seal (1).

Drive out radial shaft seal (1) with impact weight (2).

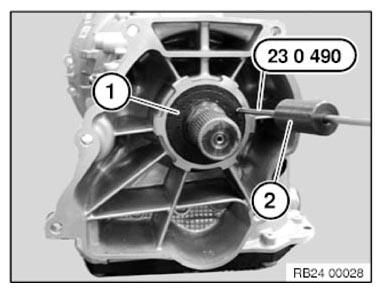

Fig 1: Driving Out Radial Shaft Seal Using Impact Weight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat sealing lips of new radial shaft seal with clean transmission oil.

Radial shaft seal firmly home with special tool 23 3 220 .

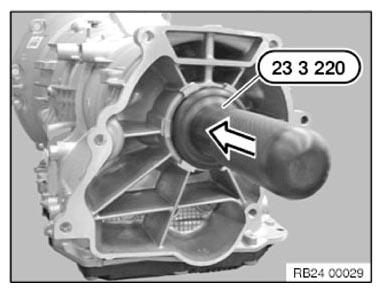

Fig 2: Installing Radial Shaft Seal Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
