64 11 545 Removing and installing fan housing for heater/air conditioner (N52T, N55)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD
Remove RIGHT/REAR SUSPENSION CROSS-BRACE

Release screws (1).

Tightening torque: 2.5 Nm

Remove lid (2) for additional electronics box toward the top.

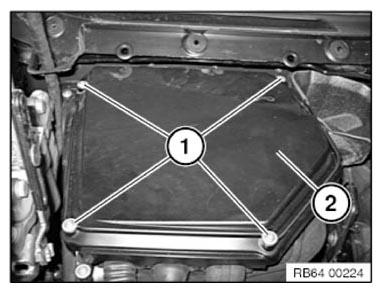

Fig 1: Identifying Lid And Screws

G09929261

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect all plug connections.

Unlatch connector housing (1 and 2) from guide of auxiliary E-box (3).

Fig 2: Identifying Connector Housings And Guide Of Auxiliary E-Box

G09875482

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) on automatic air recirculation control sensor (2) and disconnect.

Fig 3: Identifying Plug Connection On AUC Sensor

G06886157

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Picture without supplemental electronics box.

Release screws (1) on blower housing cover (2).

Lift out blower housing cover.

Fig 4: Identifying Screws On Blower Housing Cover

G06886158

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on fan housing (2).

Unlock plug connections (3) and disconnect.

Carefully feed out fan housing (2).

Fig 5: Identifying Fan Housing, Plug Connections And Screws

G06886159

Courtesy of BMW OF NORTH AMERICA, INC.
