17 21 500 Rinse Gearbox Oil Cooler And Lines Of Twin-Clutch Gearbox

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Follow operations for:
Installing a new or replacement transmission.

Procedure:

Double twin-clutch gearbox removed.

Connect the respective adapters to all oil pipes leaving the double TCT (see description below).

Use quick-release coupling to connecting line 17 2 019 from oil dispenser unit.

Use quick-release coupling to connect drain line 17 2 018 .

Hold and direct open end of drain line into a suitable drip tray.

Using oil dispenser unit, flush approx. 1 liter of transmission fluid (refer to OPERATING FLUIDS ) through oil lines and transmission oil cooler.

Reposition quick-release couplings.

Flush oil lines/transmission oil cooler in opposite direction with approx. 1 liter of transmission fluid (refer to OPERATING FLUIDS ).

Disconnect quick-release couplings.

Remove adapter.

NOTE: Dispose of flushing oil correctly.
Do not reuse under any circumstances.

Press hydraulic lines (1) into adapters (2).

Slide clamping bracket (3) into guides and secure with screw (4).

Fig 1: Hydraulic Lines, Adapters And Clamping Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

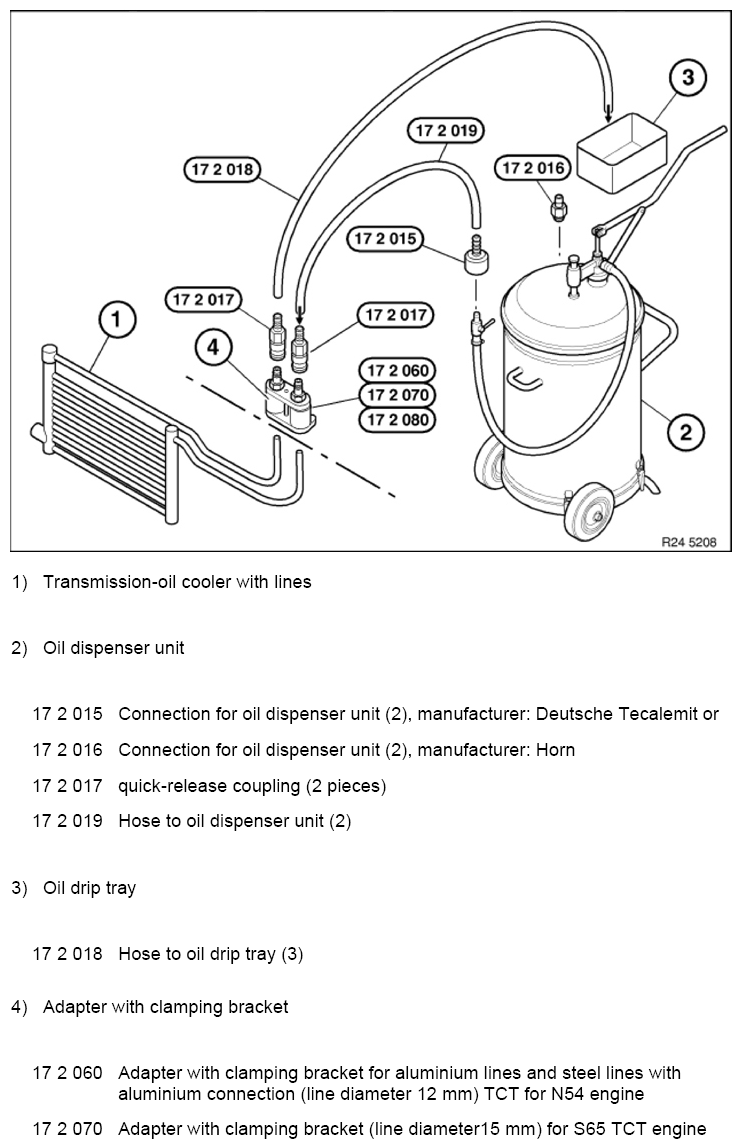

Arrangement of flushing devices for TCT

Fig 2: Exploded View Of Flushing Devices For TCT

Courtesy of BMW OF NORTH AMERICA, INC.
