17 51 020 Removing And Installing Or Replacing Left Auxiliary Water Pump For Charge Air Cooler (S63 B44 T 0)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check stored fault message.
Switch off ignition.
Remove FAN COWL .
Drain coolant for charge air cooler.

IMPORTANT: Ensure that no coolant enter into the plug connection of the auxiliary coolant pump.
Check plug connection for coolant residues. If necessary, blow clean plug connection with compressed air.

Release and disconnect coolant hoses (1).

Unlock connector (2) and remove.

Release screw (3).

Pull retaining clip upwards out of bracket.

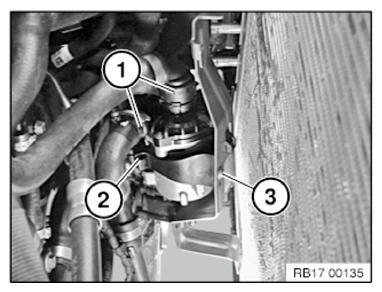

Fig 1: Coolant Hoses, Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out and remove auxiliary water pump.

If replacing the coolant pump, convert the retaining clip.

After completing repair work, add COOLANT FOR CHARGE AIR COOLER and bleed system.

Check cooling system for tightness.

Assemble engine.

Read out the fault memory of the DME control unit.

Delete fault memory.
