51 22 360 Replacing seal for door gap/roof frame on left or right rear door

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Lever out seal (2) on door window frame at front (1) with special tool 00 9 317 .

Fig 1: Removing Door Window Frame Using Special Tool (00 9 317)

G04767905

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off seal (1) beginning at the front toward the rear.

Installation note:

Thread in seal (1) in window frame first on the inside and then on the outside.

Fig 2: Pulling Window Frame Seal

G05503795

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Vehicle type Touring only:

Feed in the plastic lug (2) of the seal (1) correctly at the top rear window frame corner.

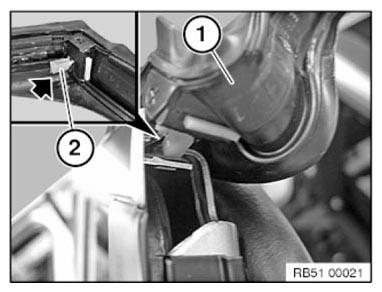

Fig 3: Identifying Door Plastic Lug And Seal

G06885593

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip seal (2) from inside door leaf (1) at bore holes.

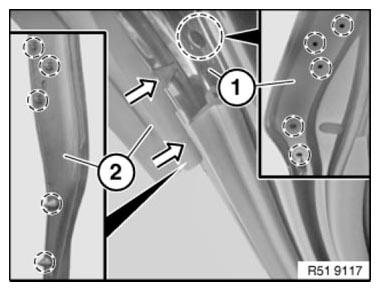

Fig 4: Removing Door Seal From Inside Door Leaf

G06885594

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Moisten seal with water for easier mounting.
