51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS " serve as the basis for this repair instruction and must be observed without fail.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

Pull front window cavity cover strip (1) off rear door.

Installation:

Moisten window cavity cover strip (1) prior to fitting with APPROVED LUBRICANT .

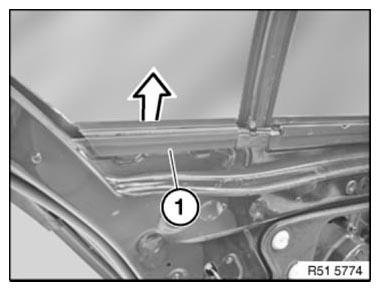

Fig 1: Pulling Front Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rear window cavity cover strip (1) off rear door.

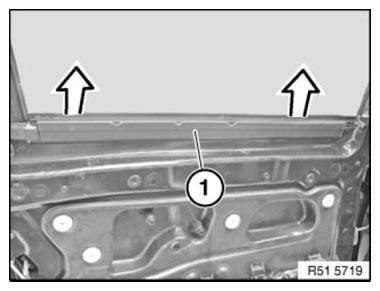

Fig 2: Pulling Rear Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
