51 22 225 Removing and installing or replacing inside door opener in left or right rear door

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

Unlock hinge bolt (1) with screwdriver (2) in direction of arrow.

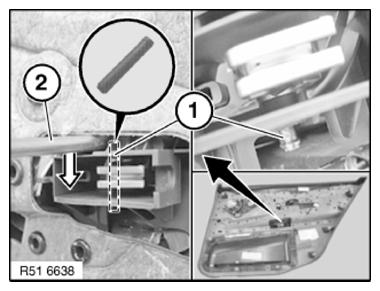

Fig 1: Removing Door Hinge Bolt Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Secure door opener (2) against falling out.

Pull out hinge bolt (1) in direction of arrow with a suitable tool until door opener (2) is free.

Do no pull out hinge bolt entirely.

Installation:

Hinge bolt (1) must snap clearly into place.

Check hinge bolt (1) for damage and replace if necessary.

Fig 2: Pulling Door Hinge Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
