51 16 041 Removing and refitting/replacing protective cap on left or right exterior mirror (without surround view) (to 07/13)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

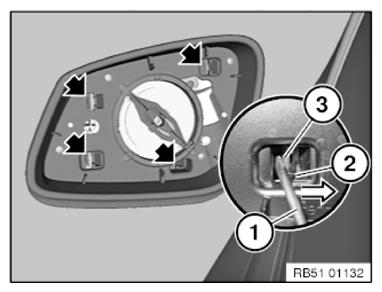

Insert the screwdriver (1) on the outside of the latch mechanism.

Place the screwdriver (1) on the bridge (2) and press in direction of arrow. This will release the stop for latch mechanisms (3).

Pull the protective cap evenly to the outside.

Fig 1: Inserting Screwdriver On Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

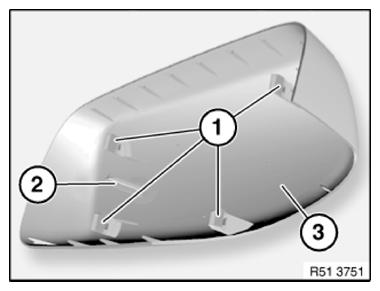

Installation note:

Latch mechanisms (1) and guide (2) on housing (3) must not be damaged or missing.

Fig 2: Identifying Mirror Latch Mechanisms, Guide And Housing

Courtesy of BMW OF NORTH AMERICA, INC.

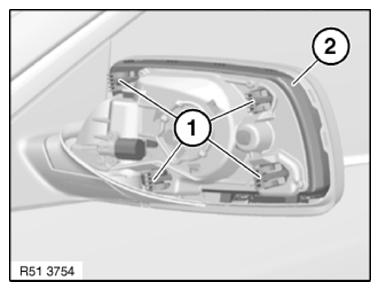

Installation note:

Fixtures (1) on retaining plate (2) must not be missing or damaged.

Fig 3: Identifying Mirror Fixtures And Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.
