51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

Press together latch mechanism (1) and slightly press protective cap (2) to the outside.

Feed out protective cap (2) to the top from retaining ring (3).

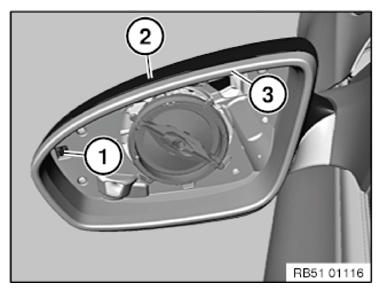

Fig 1: Identifying Exterior Mirror Latch Mechanism And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms and guides on protective cap must not be damaged.

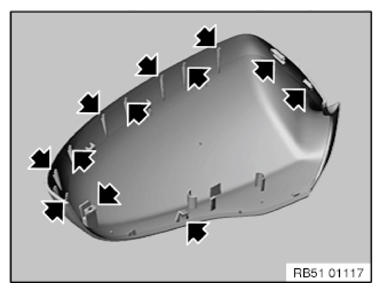

Fig 2: Locating Exterior Mirror Protective Cap Guide

Courtesy of BMW OF NORTH AMERICA, INC.
