51 21 370 Removing and installing/replacing cover (seal) on front door at bottom left or right

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

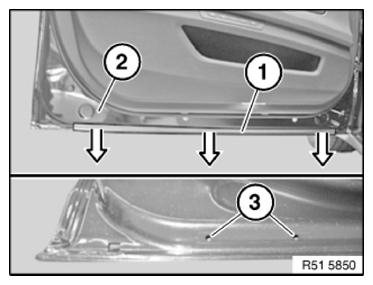

Detach cover (1) downwards in direction of arrow from front door (2).

Installation:

Clip clips of cover (1) correctly into bores (3).

Fig 1: Detach Door Cover

Courtesy of BMW OF NORTH AMERICA, INC.

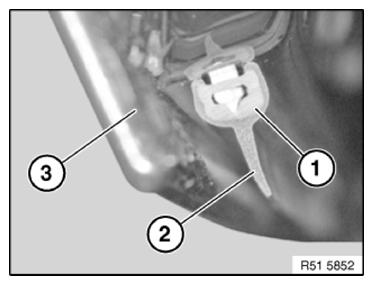

IMPORTANT: Note installation direction of cover (1).
Curve of sealing lip (2) must point away from door frame (3).

Fig 2: Identifying Door Frame Cover And Sealing Lip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

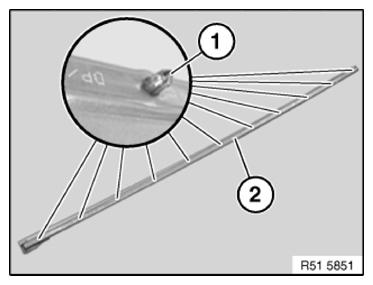

Clips (1) of cover (2) must not be damaged.

Fig 3: Identifying Front Door Clips And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
