51 21 360 Replacing seal for door seam/roof frame on left or right front door

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Do not scratch or damage visible surfaces.

Lever out plastic rivet (3) at top rear.

Installation note:

Correctly feed in seal (2) under frame trim (1) and window frame trim (5).

Fig 1: Identifying Front Door Plastic Rivet, Seal And Trim
G04767887Courtesy of BMW OF NORTH AMERICA, INC.

Lever out plastic rivet (2) on seal (1) at inside front.

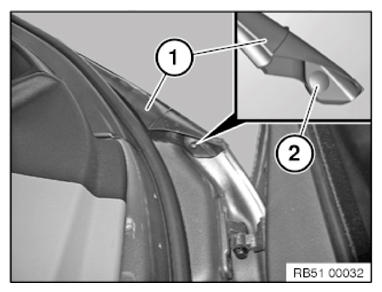

Fig 2: Identifying Front Door Plastic Rivet And Seal
G09926011Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Feed in seal (1) at front again correctly under door edge aperture and feed in frame trim (A → B).

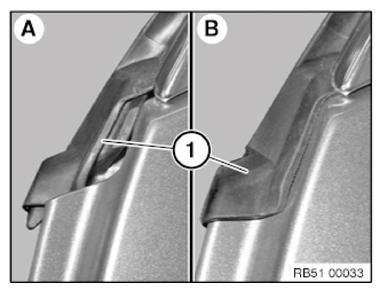

Fig 3: Identifying Under Door Edge Aperture And Frame Trim
G09926012Courtesy of BMW OF NORTH AMERICA, INC.

Lever out seal (1) from inside.

Fig 4: Removing Door Seal
G05503881Courtesy of BMW OF NORTH AMERICA, INC.
