51 21 330 Removing and installing/renewing window cavity cover strip on inner front door

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Pull off window cavity cover strip (1) towards top.

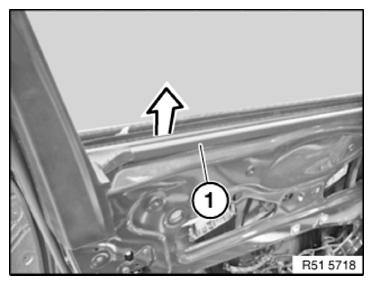

Fig 1: Pulling Window Cavity Cover Strip
G09925974Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat window cavity cover strip (1) with water before fitting.

Start with installation at front.

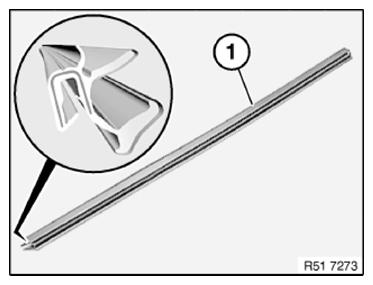

Fig 2: Identifying Coat Window Cavity Cover Strip
G09925975Courtesy of BMW OF NORTH AMERICA, INC.
