51 21 235 Removing and installing/replacing Bowden cable for inside door opener on left or right front door

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM PANEL

NOTE: Graphic is similar.

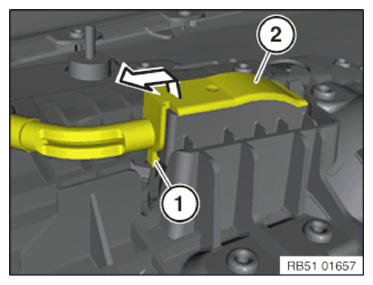

Lever out lock (1)

Pull off Bowden cable housing (2) towards rear/top - the Bowden cable feeds out of its own accord in the process.

Fig 1: Pulling Bowden Cable Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

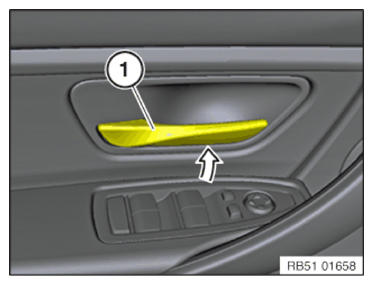

To install the Bowden cable, press inner door handle (1) in direction of arrow.

Fig 2: Pressing Inner Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.
