51 21 225 Removing and installing or replacing inside door opener in left or right front door
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front DOOR TRIM PANEL
NOTE:
Graphic is similar.

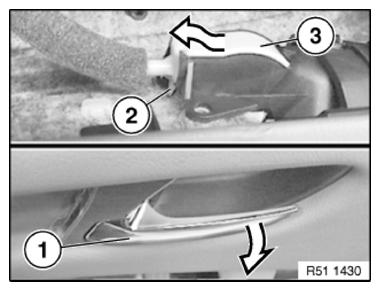

Lever out lock (2)
Pull off Bowden cable housing (3) towards rear/top - the Bowden cable feeds out of its own accord in the process.
Installation note:
To install the Bowden cable, press door opener (1) against direction of arrow towards door trim panel.
Protect door opener (1) against damage.
Secure door opener (3) against falling out.

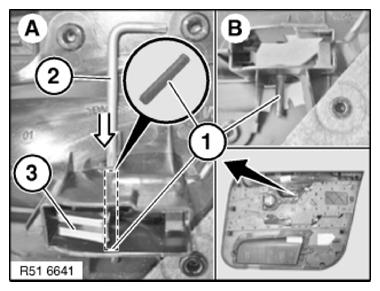

Unlock hinge bolt (1) with Torx T-20 (2) in direction of arrow and remove.
Installation note:
Check hinge bolt (1) for damage and replace if necessary.
Hinge bolt (1) must snap clearly into place.
