54 12 265 Adjusting both drive cables for actuation of glass slide/tilt sunroof

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing glass slide/tilt sunroof,

refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID .

Remove drive unit with transmission for slide/tilt sunroof actuation,

refer to 67 61 515 REPLACING DRIVE WITH GEAR (FRONT) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMA GLASS SUNROOF) .

Slide mechanism (1) into zero setting.

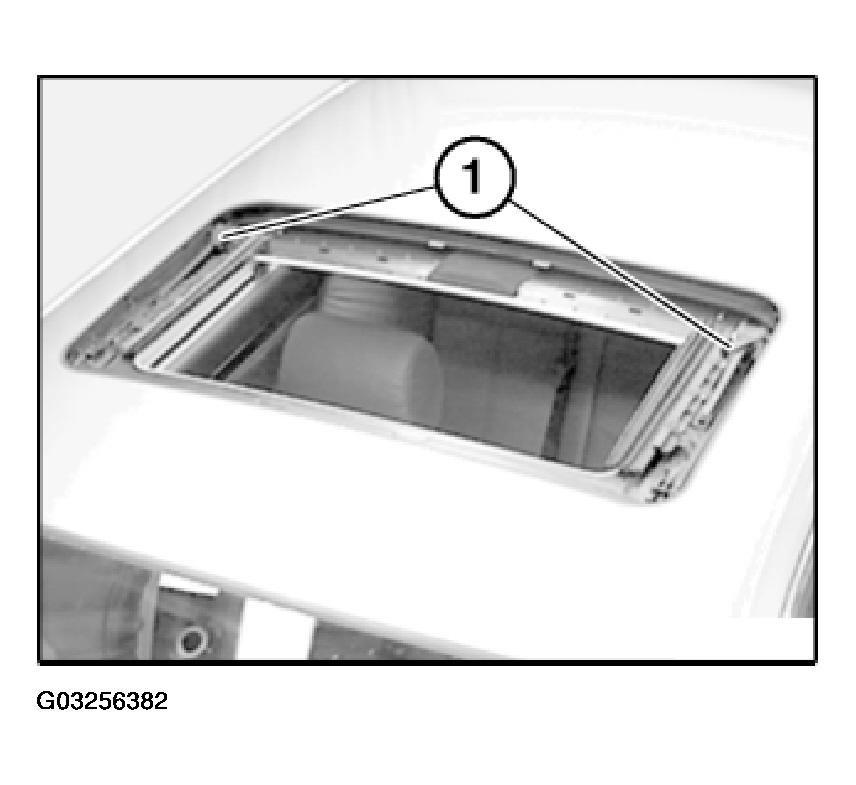

Fig 1: Mechanism In Zero Position

Courtesy of BMW OF NORTH AMERICA, INC.

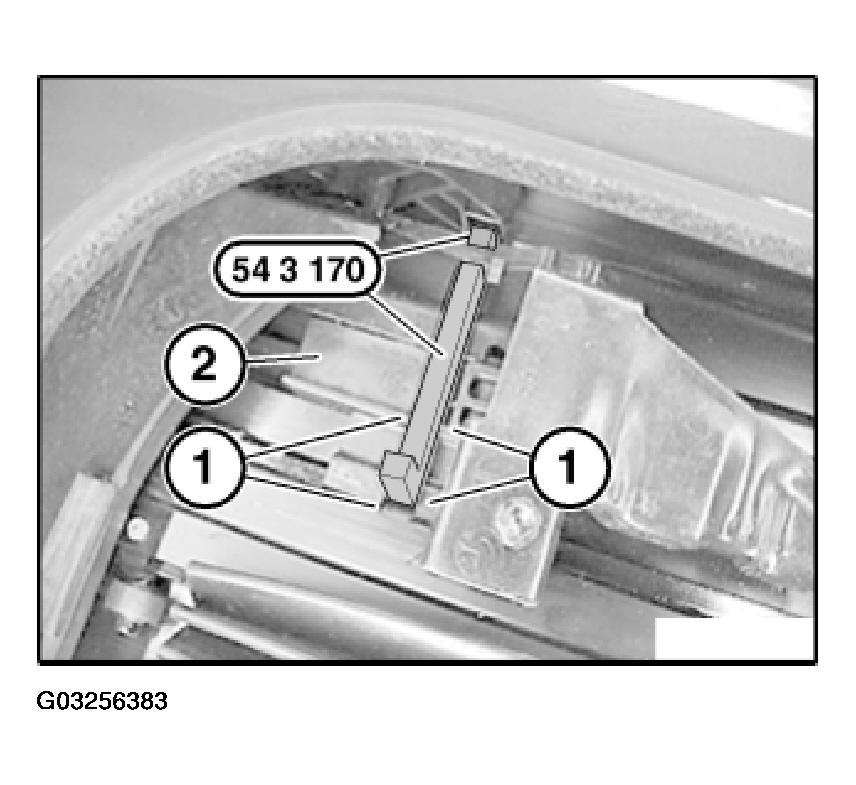

Insert special tool 54 3 170 left/right between the guides (1) in the lifting device (2).

Fig 2: Inserting Special Tool Between Guides In Lifting Device

Courtesy of BMW OF NORTH AMERICA, INC.

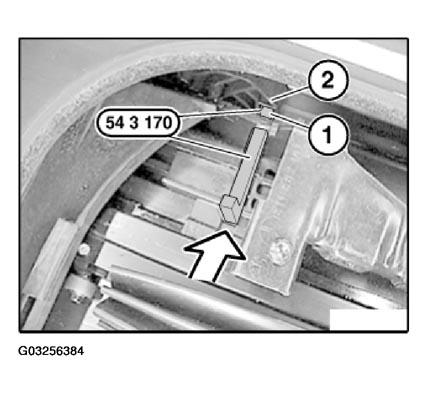

Lift front of special tool 54 3 170 (1) slightly and insert in control gate (2) (both drive cables are now secured in their zero setting).

Fig 3: Securing Drive Cables Into Zero Setting

Courtesy of BMW OF NORTH AMERICA, INC.

Install drive unit with transmission for slide/tilt sunroof actuation,

refer to 67 61 515 REPLACING DRIVE WITH GEAR (FRONT) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMA GLASS SUNROOF) .

CAUTION: Remove special tool 54 3 170 left/right (risk of damage).

Check function.
