54 12 126 Removing and installing/replacing headliner mechanism for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If necessary, apply light coat of Renax GL 1 (Fuchs) grease to guide duct. Removing and installing headliner for glass slide/tilt sunroof cover,

refer to 54 12 136 REMOVING AND INSTALLING/REPLACING HEADLINER FOR GLASS SLIDE/TILT SUNROOF COVER

NOTE: Always replace headliner mechanism for glass slide/tilt sunroof in pairs.

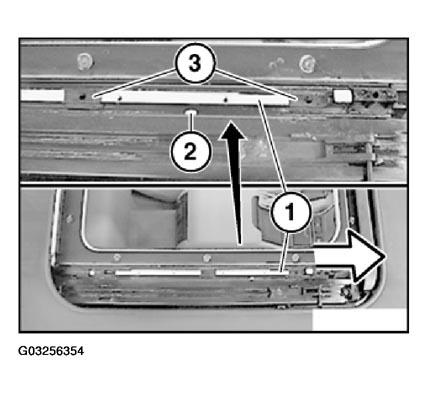

Slide headliner mechanism (1) fully forwards.

Move mechanism back until nipple (2) is located to right of plastic slides (3).

Fig 1: Sliding Headliner Mechanism Fully Forward

Courtesy of BMW OF NORTH AMERICA, INC.

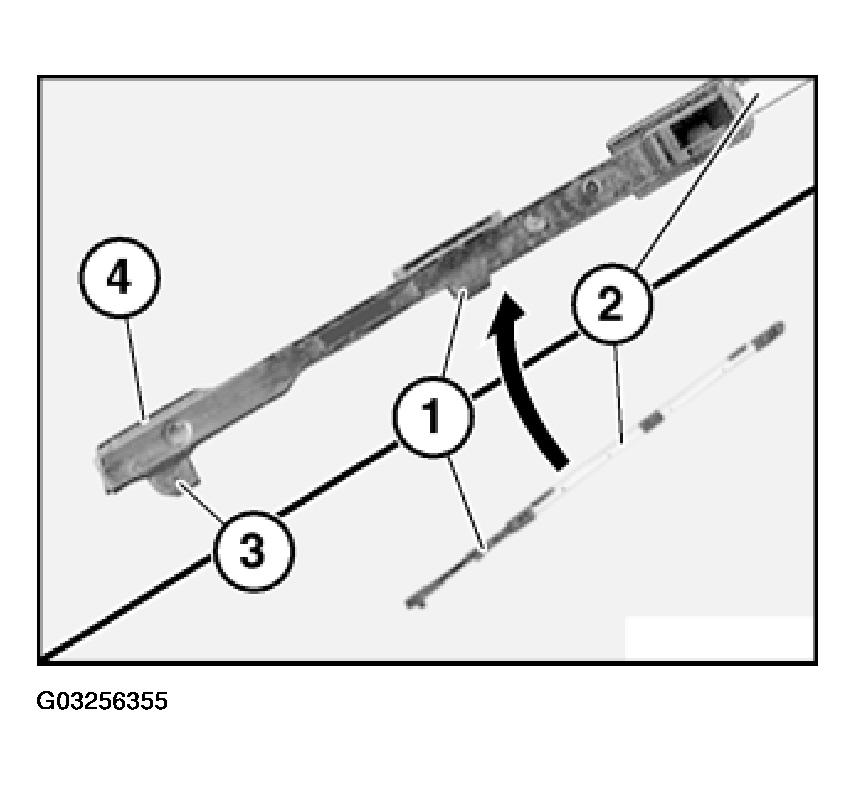

Removal of headliner mechanism with "flexible fulcrum pad"(only on right side):

NOTE: The flexible fulcrum pad (1) is securely attached to the rail (2) (cannot be removed).

3 Outer guide

4 Inner guide

Fig 2: Identifying Headliner Flexible Fulcrum Pad Components

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

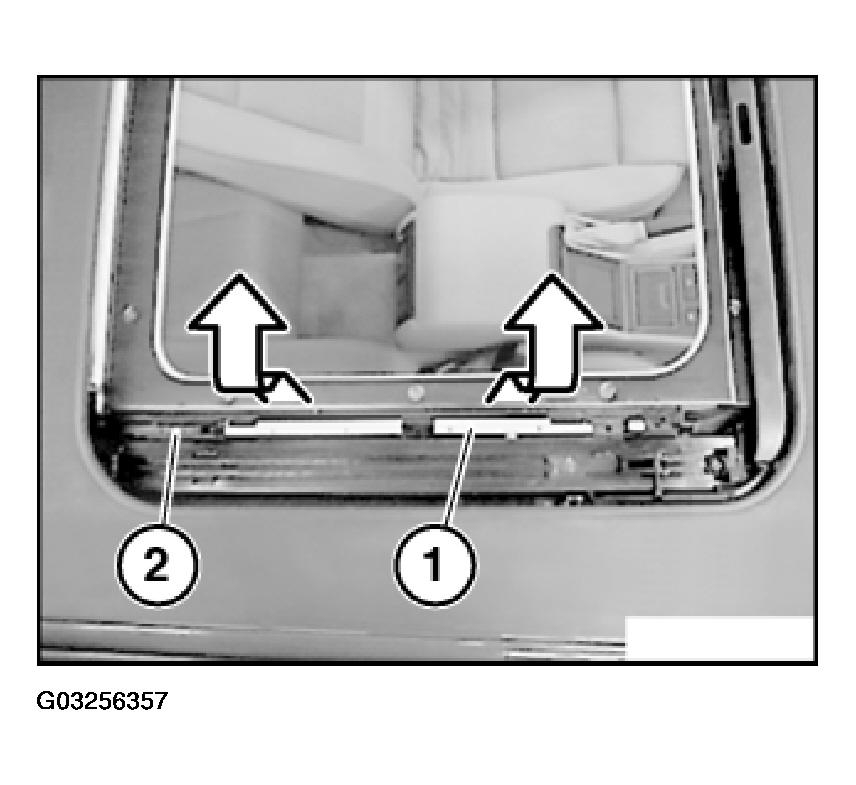

Tilt headliner mechanism inwards at front and back of strut (1) and pull outwards (this produces an audible click on flexible fulcrum pad).

Fig 3: Tilting Headliner Mechanism Inwards (Right)

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

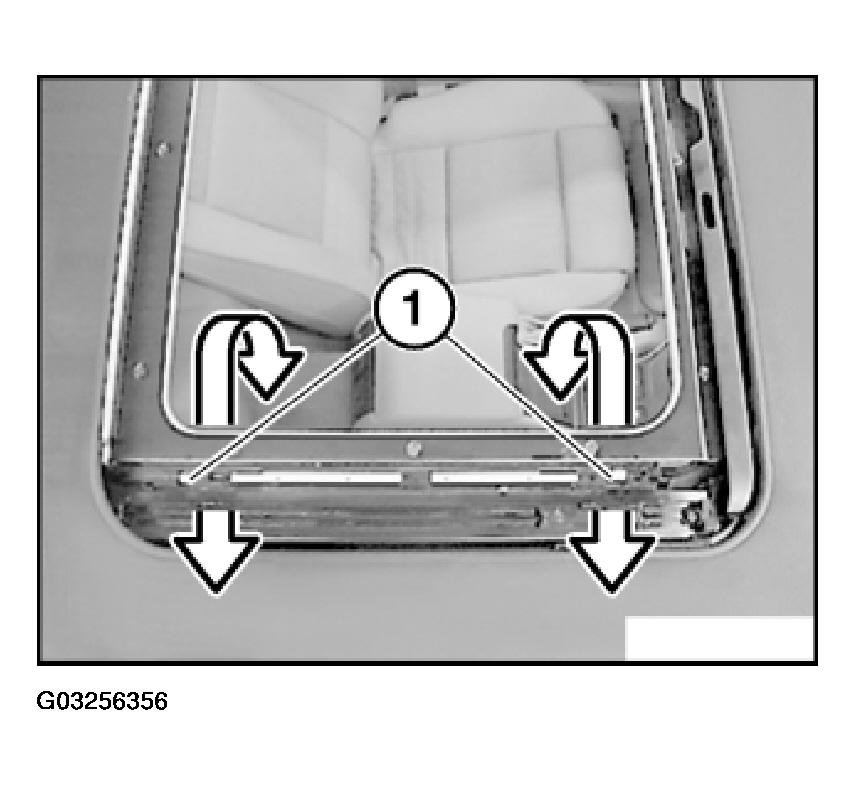

Tilt headliner mechanism (1) outwards with flexible fulcrum pad (2) and pull inwards to remove from guide channel.

Fig 4: Removing Headliner Mechanism From Guide Channel (Right)

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

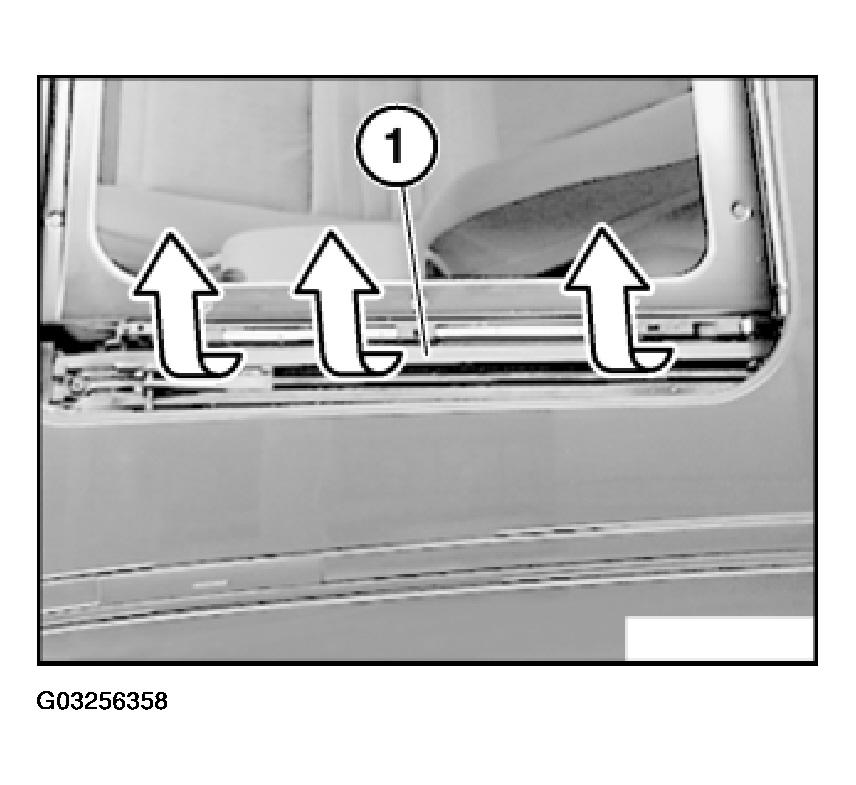

Unfasten headliner mechanism (1) and lift inwards/upwards to remove from guide channel.

Fig 5: Removing Headliner Mechanism From Guide Channel (Left)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of headliner mechanism with "flexible fulcrum pad"(only on right side):

NOTE: To illustrate more clearly, installation shown with a removed glass slide/tilt sunroof.

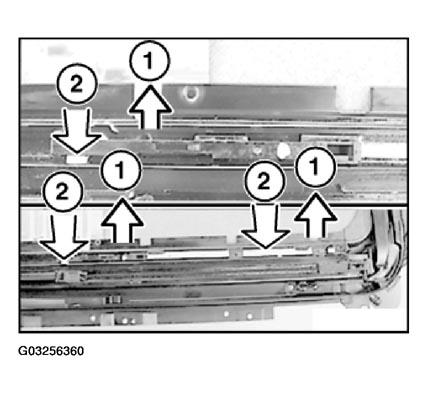

Install the guide (1) on the flexible fulcrum pad and rest of headliner mechanism (2) facing outwards in guide channel (3).

Fig 6: Installing Headliner Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

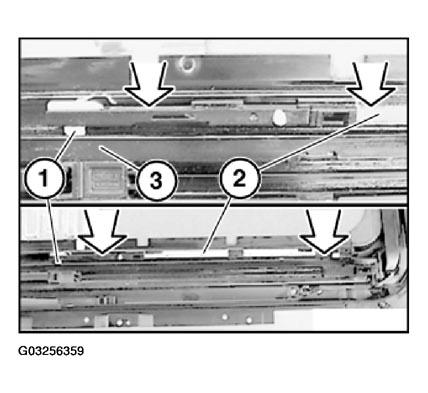

Press headliner mechanism inwards (1) and press outer guide downwards (2) into the guide channel.

Fig 7: Pressing Headliner Mechanism Into Guide Channel

Courtesy of BMW OF NORTH AMERICA, INC.
