54 12 015 Replacing left or right rubber gaiters for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing glass slide/tilt sunroof cover,

refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID .

Move mechanism into lift position.

Unscrew bolt (1). Turn rubber gaiter (2) inwards and slide support (3) for rubber gaiter backwards.

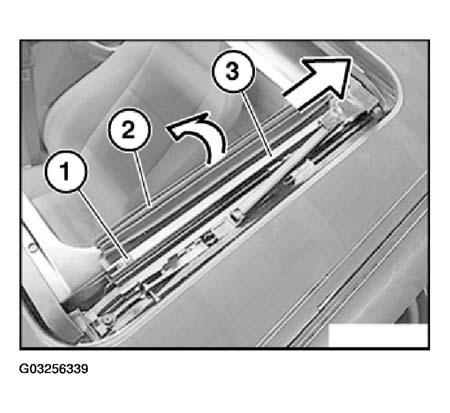

Fig 1: Removing Rubber Gaiter From Slide Support

Courtesy of BMW OF NORTH AMERICA, INC.

Slide support (1) for rubber gaiter out of guide (2) and pull forwards to remove.

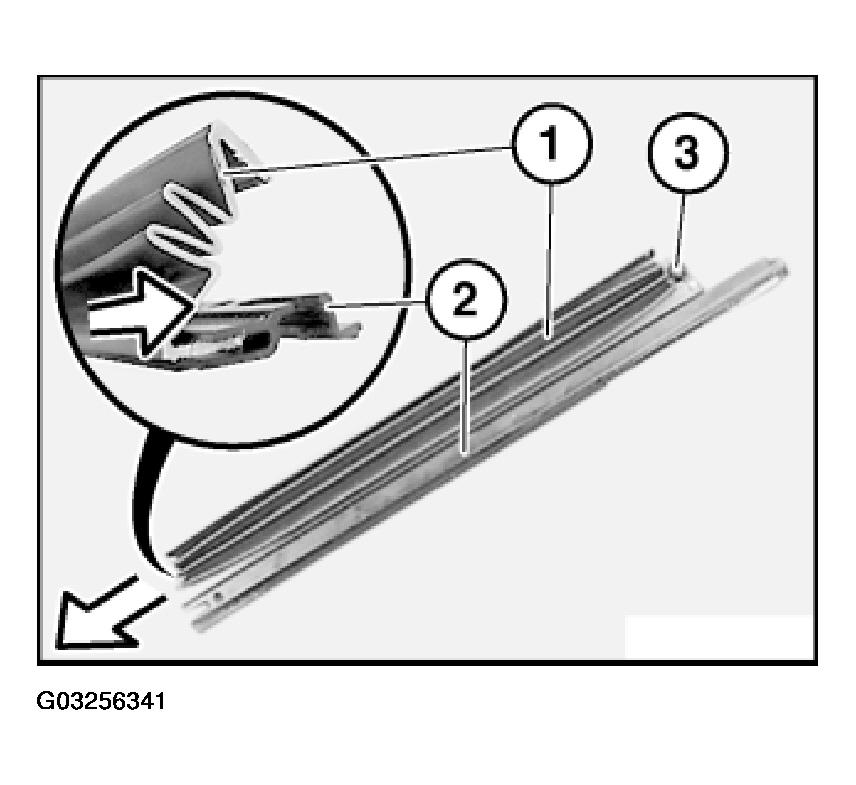

Fig 2: Removing Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Only On Replacement :

Pull rubber gaiter (1) out of support (2) (if necessary, fold over the crimped area).

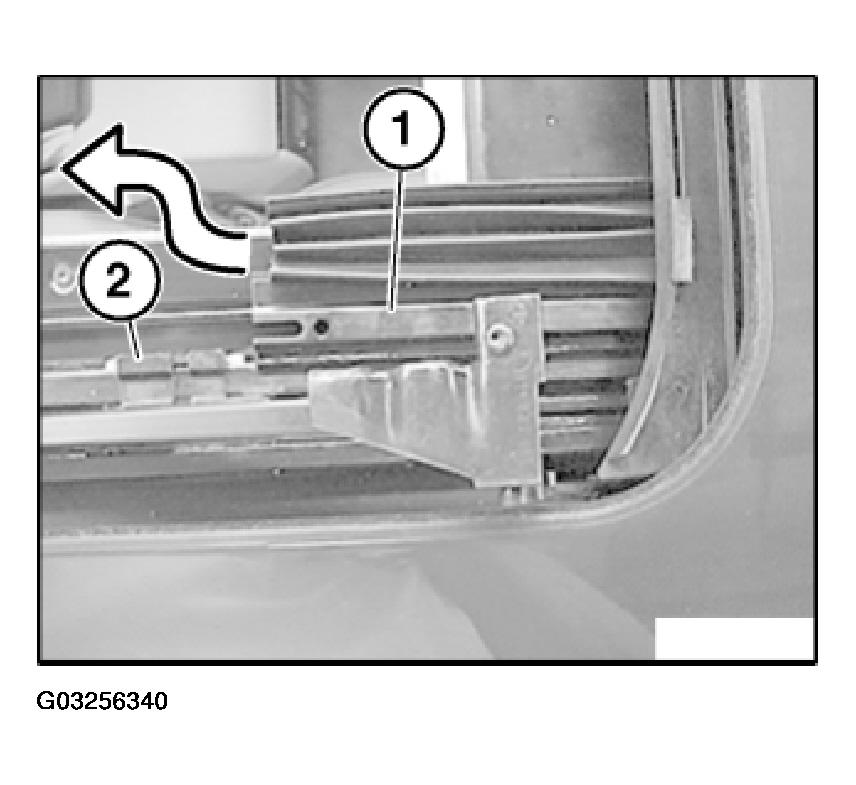

Fig 3: Pulling Rubber Gaiter Out Of Support For Replacement Purpose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function of contact pressure roller (3).

Check function.
