52 17 035 Removing and installing/replacing gearing for head restraint adjustment (comfort seat)
WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Head restraint must be moved as far forwards as possible.
Remove rear panel at top.
Remove rear panel at bottom.

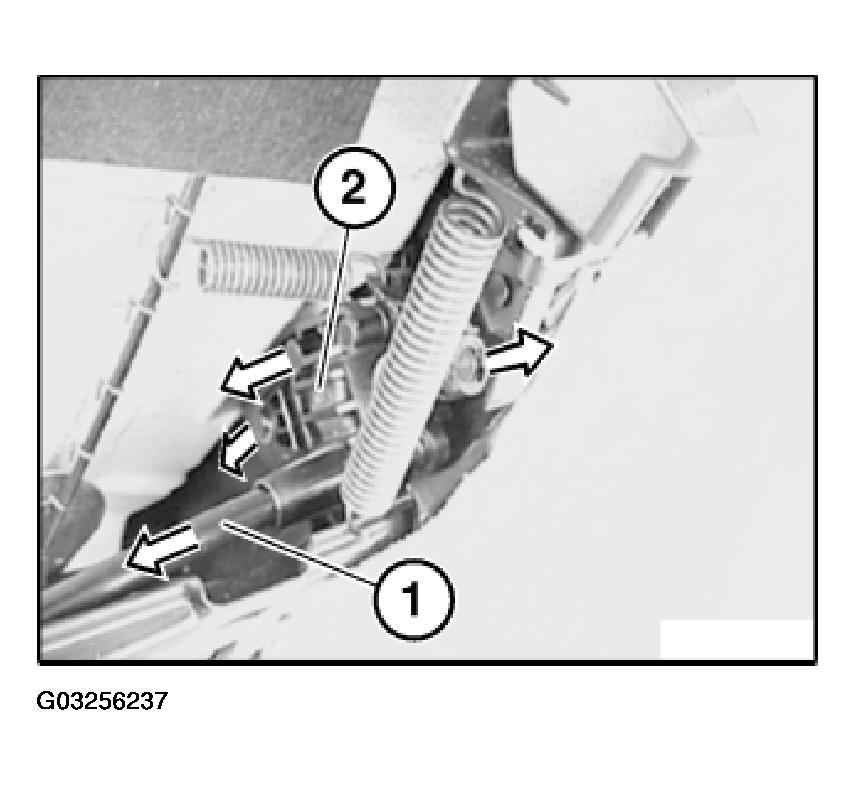

Withdraw shaft (1) from gearing (2).
Detach upper and lower retainer of gearing (2).
Remove gearing (2) to side.
Installation:
Carry out function check.
