31 53 040 Removing and installing/replacing right output shaft bearing block (N20)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- REMOVE right output shaft.

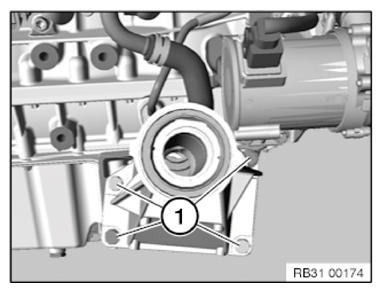

Release screws (1).
Tightening torque 31 60 1AZ .
Remove bearing support from oil sump.
Installation note:
Replace O-RING .
Replace RADIAL SHAFT SEAL .
