23 12 524 Replacing radial shaft seal for drive shaft (GS6-45BZ/DZ)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only approved transmission oil. Refer to OPERATING FLUIDS .
Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove TRANSMISSION .
Remove CLUTCH OPERATOR AND RELEASE LEVER from guide tube.

Release screws (1).

Tightening torque: 23 11 2AZ . See HOUSING WITH LID (GS6-45BZ/DZ) or HOUSING WITH LID (GS6-53BZ) .

Remove guide tube (2).

Installation note:

Clean guide tube.

Do not grease guide tube.

Fig 1: Identifying Guide Tube And Screws

G09848092

Courtesy of BMW OF NORTH AMERICA, INC.

Drive a hole into radial shaft seal using a center punch.

IMPORTANT: Do not use a drill as drillings may result in transmission malfunction.

Screw special tool 23 0 490 into radial shaft seal.

Withdraw radial shaft seal from transmission housing with aid of impact weight.

Fig 2: Removing Radial Shaft Seal Special Tools (23 0 490)

G04726057

Courtesy of BMW OF NORTH AMERICA, INC.

Push radial shaft seal (1) onto special tool 23 0 220 .

Installation note:

Coat sealing lips of radial shaft seal with transmission oil.

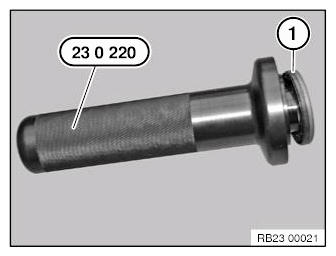

Fig 3: Pushing Radial Shaft Seal Onto Special Tool (23 0 220)

G09848117

Courtesy of BMW OF NORTH AMERICA, INC.

Slide special tool 23 0 220 onto drive shaft.

Drive in radial shaft seal with plastic hammer as far as it will go.

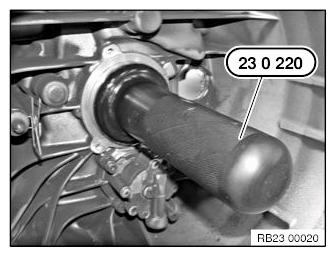

Fig 4: Driving Radial Shaft Seal With Plastic Hammer

G09848118

Courtesy of BMW OF NORTH AMERICA, INC.
