23 12 092 Replacing radial shaft seal for gearshift shaft (GS6-45BZ/DZ)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only approved transmission oil. Refer to OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Shift transmission into 2nd gear.
Partially release PROPELLER SHAFT .
- Disconnect propeller shaft at transmission.
- Release center mount.
- Tie up propeller shaft to underbody.

NOTE: Bending the propeller shaft by an excessive angle can cause premature damage to the joint/propeller shaft!

Lever circlamp (1) out of groove with a small screwdriver.

Slide circlamp (1) towards rear.

Drive out cylinder pin (2).

Fig 1: Driving Out Cylinder Pin

Courtesy of BMW OF NORTH AMERICA, INC.

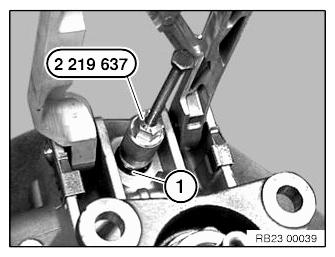

Screw in special tool 2 219 637 until it is firmly connected with radial shaft seal (1).

Pull out radial shaft seal with special tool 2 219 637 .

Fig 2: Pulling Radial Shaft Seal Using Special Tool (2 219 637)

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing lips of radial shaft seal and gearshift shaft with transmission oil.

Drive in radial shaft seal with special tool 23 0 220 .

Fig 3: Installing Radial Shaft Seal Using Special Tool (23 0 220)

Courtesy of BMW OF NORTH AMERICA, INC.
