23 12 061 Replacing radial shaft seal for output flange (GS6-45BZ/DZ)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only approved transmission oil. Refer to OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove CROSS MEMBER .
Partially remove propeller shaft.
- Disconnect propeller shaft at transmission.
- Release center mount.
- Tie up the propeller shaft to the vehicle underbody.
  NOTE: Bending the propeller shaft by an excessive angle can cause premature damage to the joint/propeller shaft!

Brace output flange with special tool 23 0 020 .

Undo collar nuts with special tool 24 2 380 .

IMPORTANT: Do not drive on flange.

Secure collar nut with Loctite 243.

Loctite 243: BMW Parts Department.
Tightening torque: 23 21 1AZ .

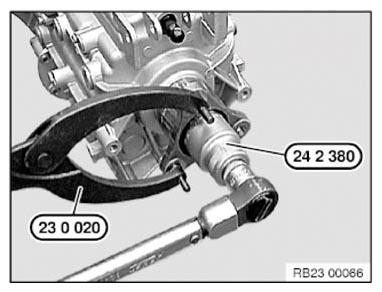

Fig 1: Removing Collar Nuts With Special Tool 24 2 380
Courtesy of BMW OF NORTH AMERICA, INC.

Detach output flange (1) with special tool 33 1 150 and adapter plate 33 1 154 from output shaft.

Fig 2: Removing Output Flange Using Special Tool (33 1 150) And Adapter Plate (33 1 154)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw on special tool 23 3 210 .

23 3 210 Push special tool over output shaft and screw firmly into sealing ring.

Fig 3: Pushing Special Tool Over Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw into special tool 23 3 210 again and continue turning until sealing ring is pulled out of transmission housing.

If necessary, remove ring spring of sealing ring.

Fig 4: Inserting Screw Into Special Tool (23 3 210)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat sealing lips of new radial shaft seal with transmission oil.

Drive radial shaft seal fully home using special tool 23 3 230 and plastic hammer.

Fig 5: Installing Radial Seal Using Special Tool (23 3 230)

Courtesy of BMW OF NORTH AMERICA, INC.
