0491831 271190 Device Mechanical tool

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2016 BMW 550i xDrive, 2016 BMW 535i xDrive, 2016 BMW 535d xDrive, 2016 BMW 528i xDrive, and 2015 BMW 550i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For installing the rubber mount in the transfer box

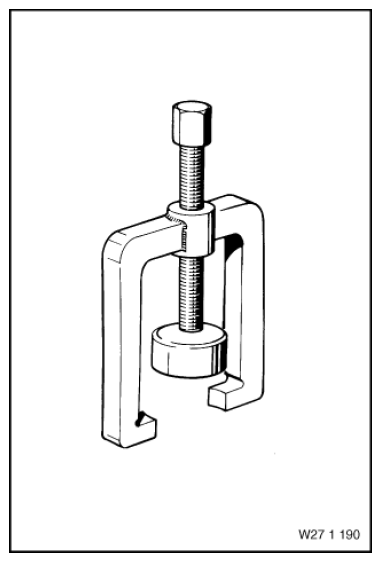

Fig 1: Device (0491831)
G09930786Courtesy of BMW OF NORTH AMERICA, INC.
