0491824 271050 Puller Mechanical tool

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2016 BMW 550i xDrive, 2016 BMW 535i xDrive, 2016 BMW 535d xDrive, 2016 BMW 528i xDrive, and 2015 BMW 550i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For withdrawing the radial shaft seals in the transfer box on the output shaft at the front

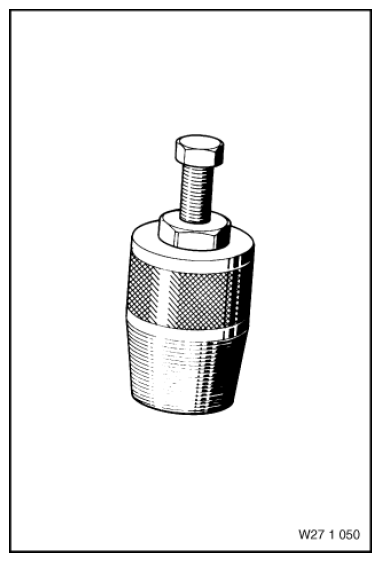

Fig 1: Puller (0491824)
G09930811Courtesy of BMW OF NORTH AMERICA, INC.
