51 12 742 Replacing a shock absorber for rear bumper (HP)
WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

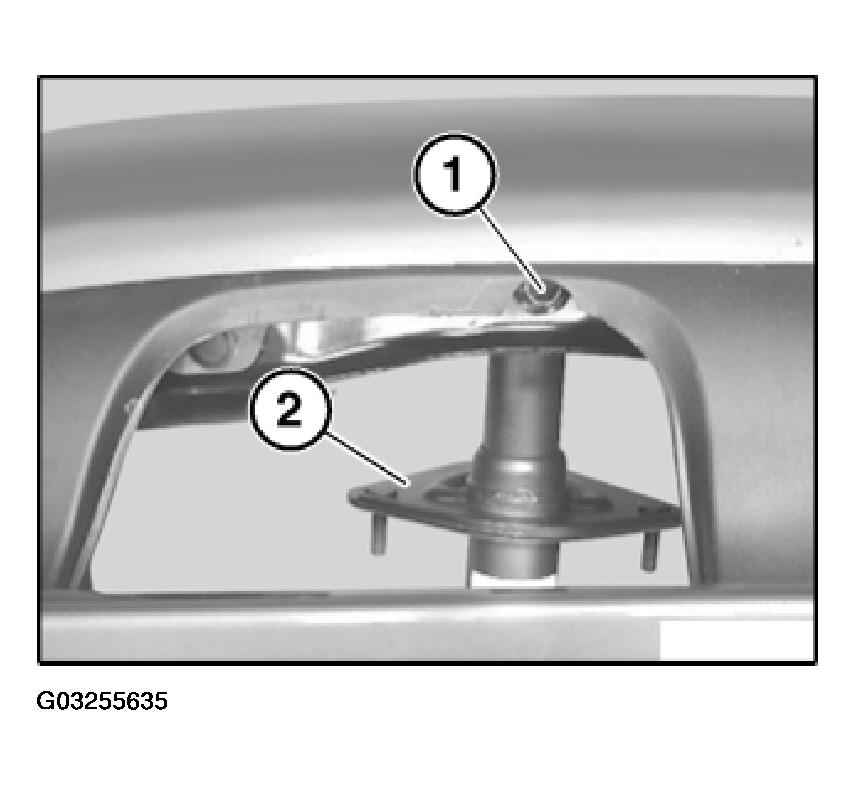

Release screw (1) and remove shock absorber (2).
Installation:
Observe tightening torque, refer to 51 12 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .
