51 12 000 Removing and installing complete rear bumper (HP)

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

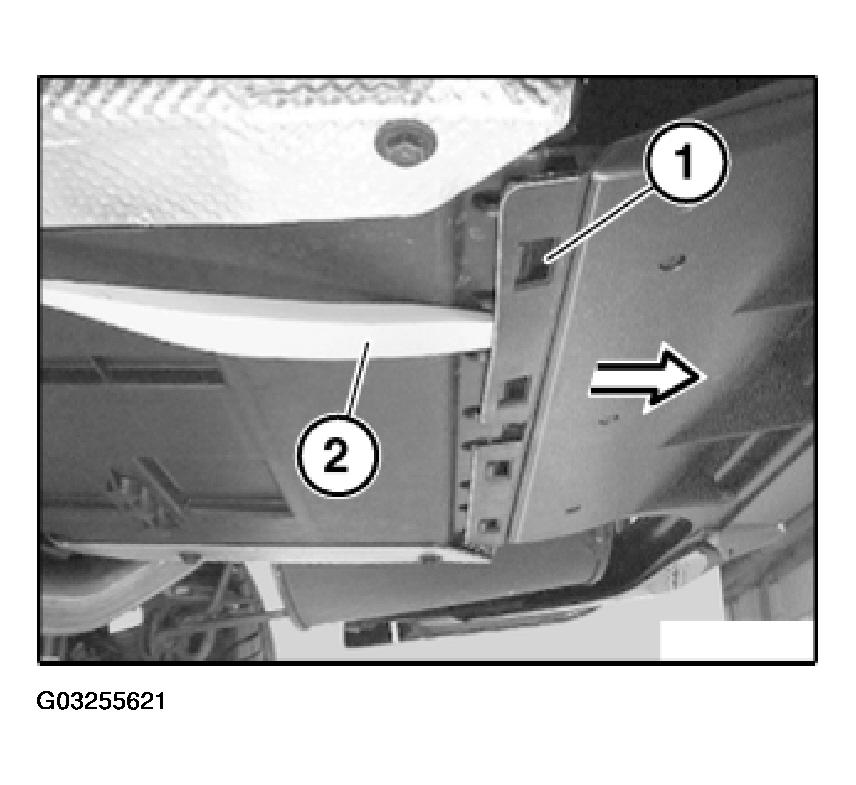

Unclip cover (1) with assembly wedge (2) and unhook in direction of arrow.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

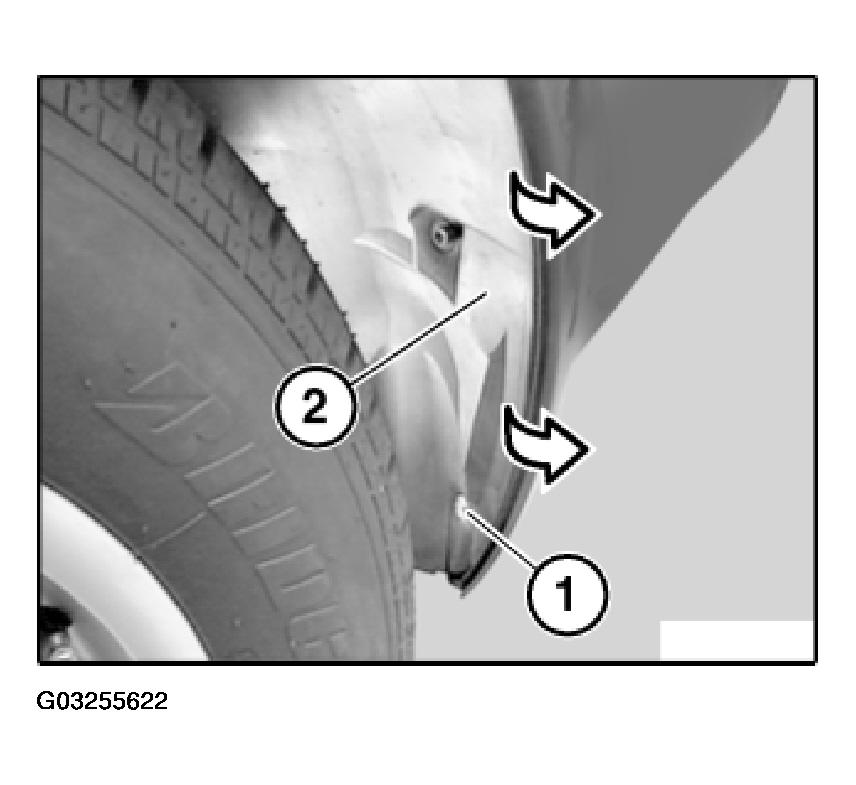

Release screws (1) on left and right.

Lift out wheel arch trim (2) on left and right.

Fig 2: Lifting Out Wheel Arch Trim On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

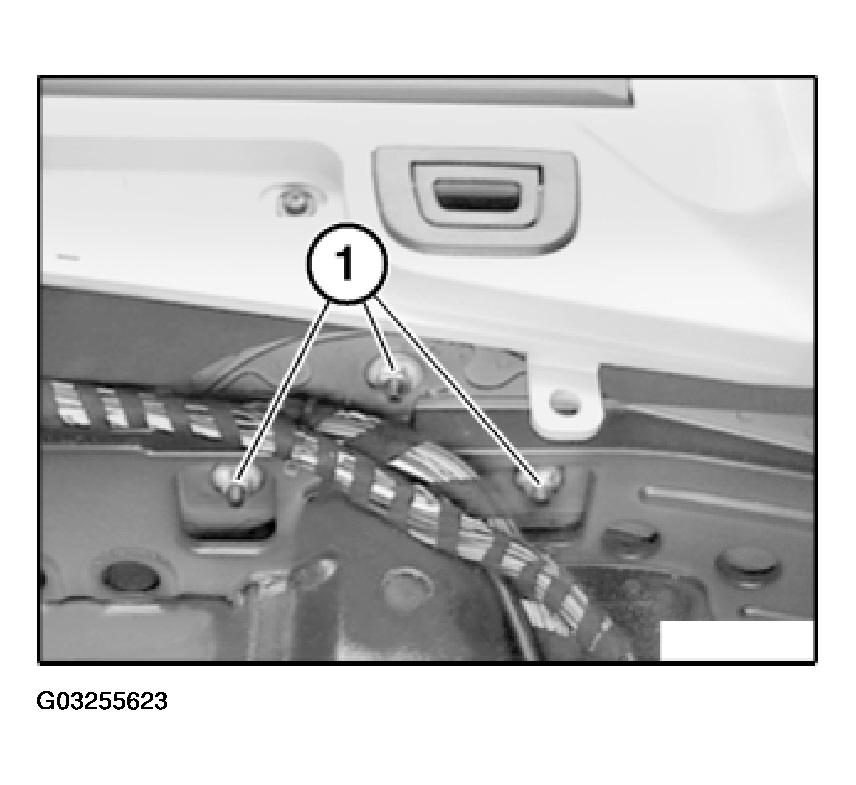

Release nuts (1) on left and right.

Fig 3: Releasing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe tightening torque, refer to 51 12 3AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Open rear lids.

Version With PDC Option:

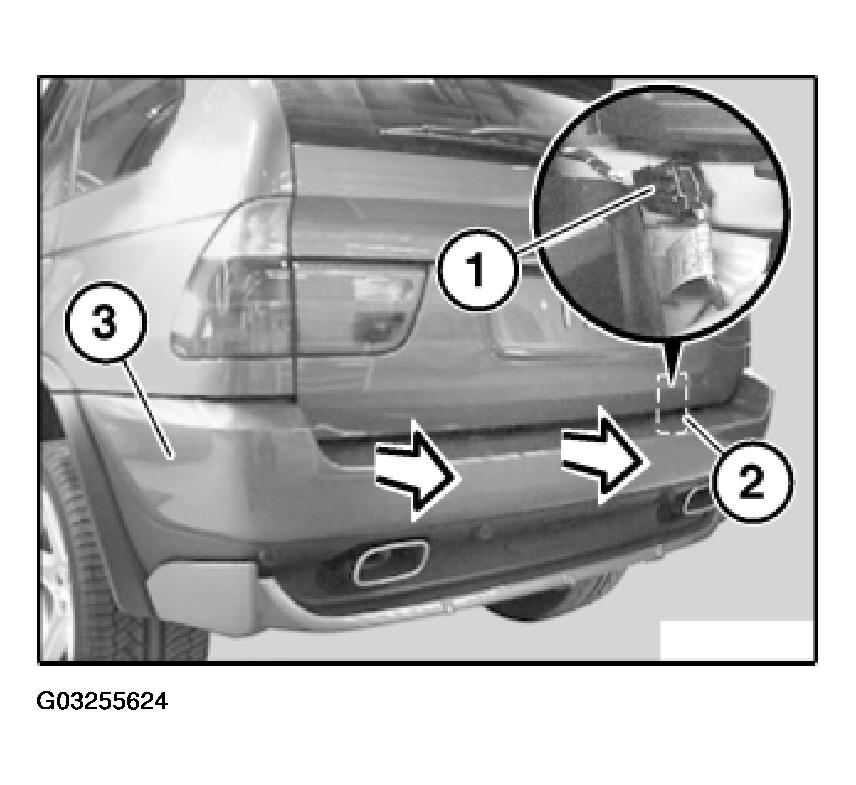

Disconnect plug connection (1) in area (2).

Pull off bumper (3) slightly towards rear, feed out PDC wiring harness in area (2).

Remove bumper (3) in direction of arrow.

Fig 4: Disconnecting PDC Connection & Removing Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
