51 21 225 Removing and installing/replacing inside door handle in left or right front door

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Version With Lighting For Door Handle:

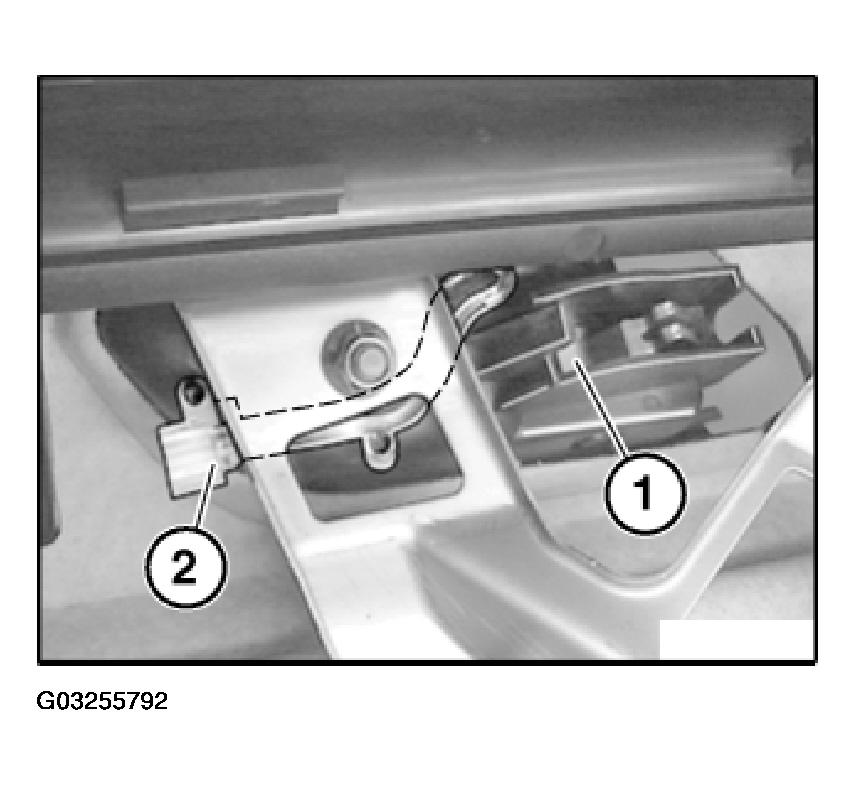

CAUTION: Do not damage light guide (2) when removing door handle (1).

Fig 1: Identifying Light Guide

Courtesy of BMW OF NORTH AMERICA, INC.

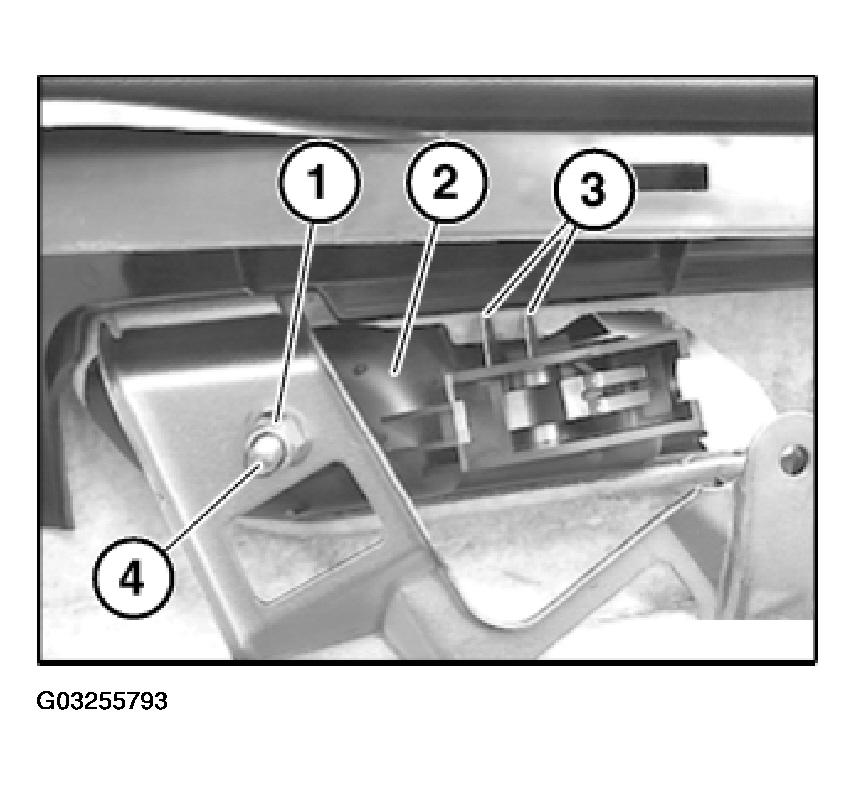

Release nut (1).

Fig 2: Releasing Inside Door Handle Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Guides (2) on door handle (3) must not be damaged.

Move screw (4) slightly into guide of door handle (3) during removal.

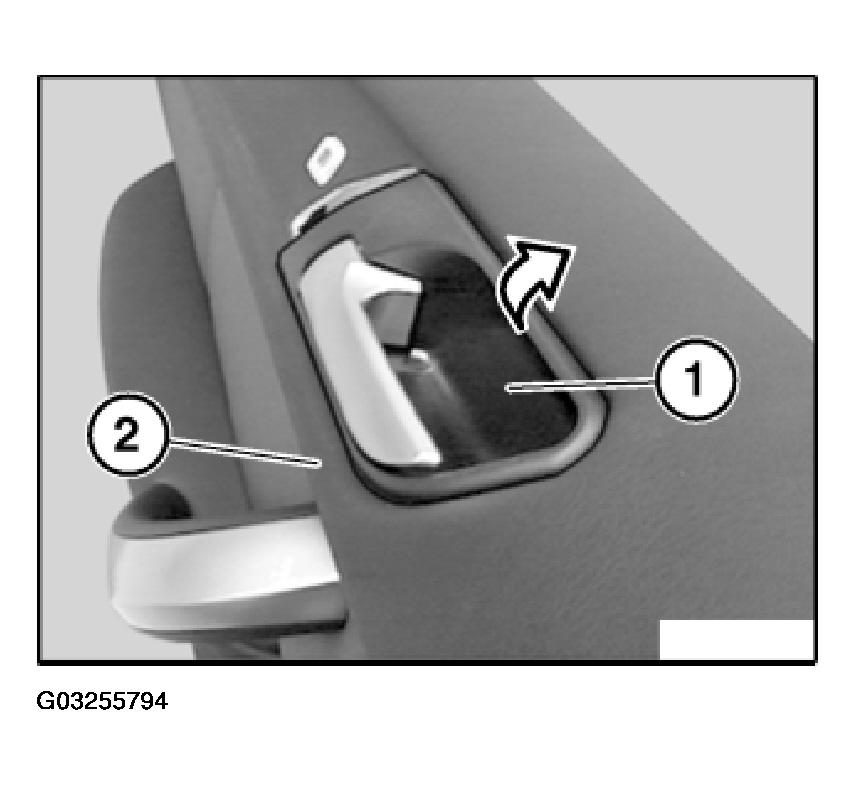

Twist inside door handle (1) inwards/upwards out of door trim panel (2).

Fig 3: Removing Inside Door Handle From Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

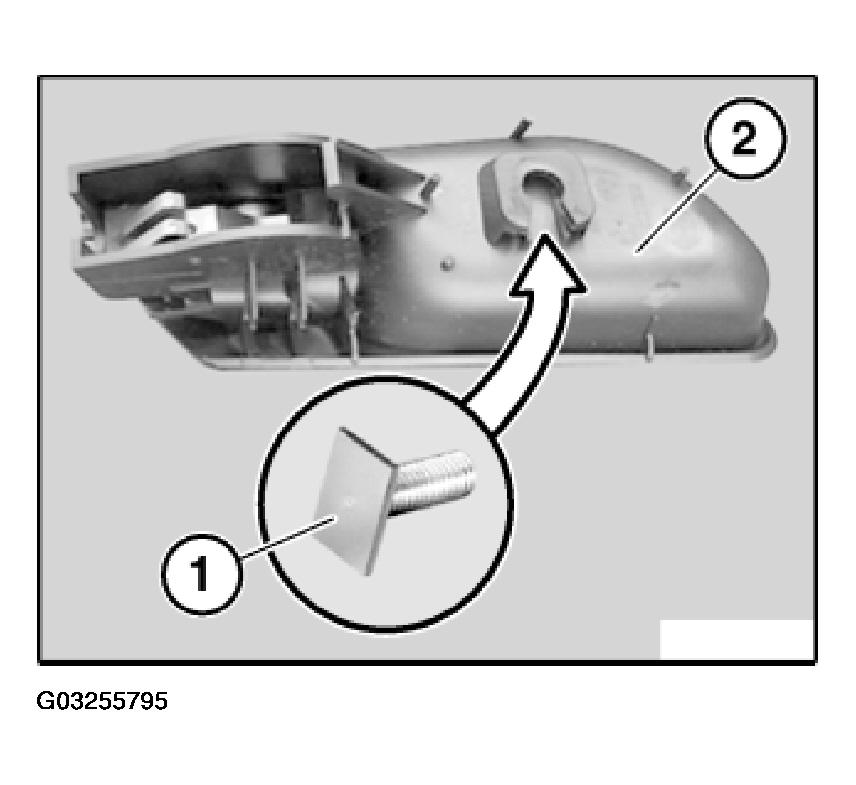

Mount in door handle (1) for screw (2) must not be damaged.

Fig 4: Use Care When Mounting Inside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.
