51 21 090 Removing and installing/replacing door lock on left or right front door

Remove sound insulation on front door, refer to 51 48 ... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .

Driver's side only:

Remove complete lock cylinder, refer to 51 21 140 REMOVING AND INSTALLING/REPLACING COMPLETE LOCK CYLINDER .

Disconnect plug connection (1) on door lock (2).

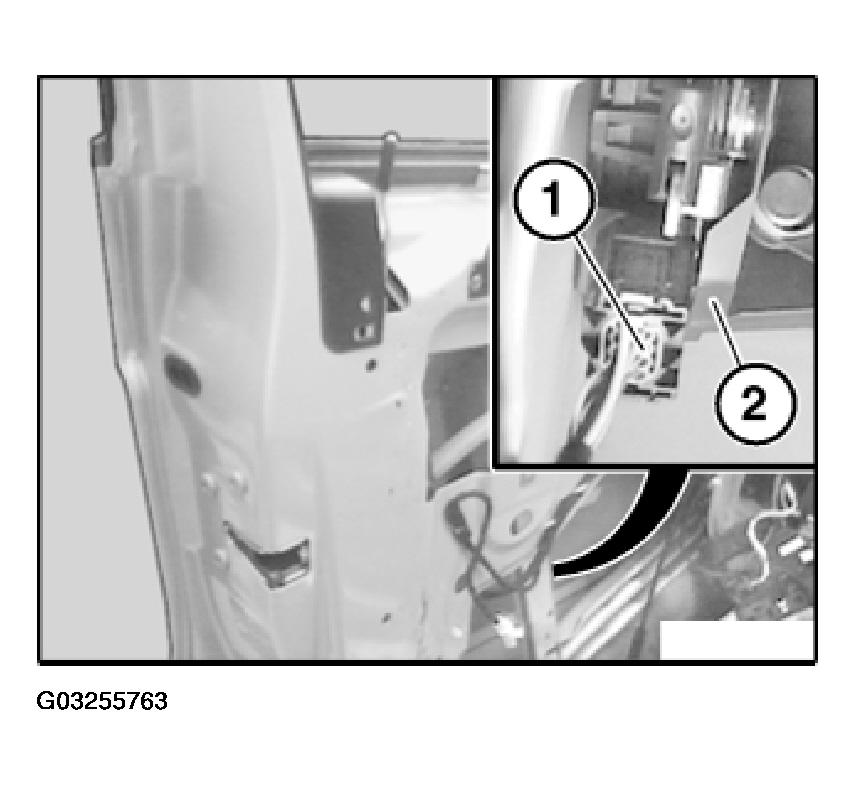

Fig 1: Removing Front Door Lock Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip ball head (1).

Detach Bowden cable (2) from support (3) on door lock.

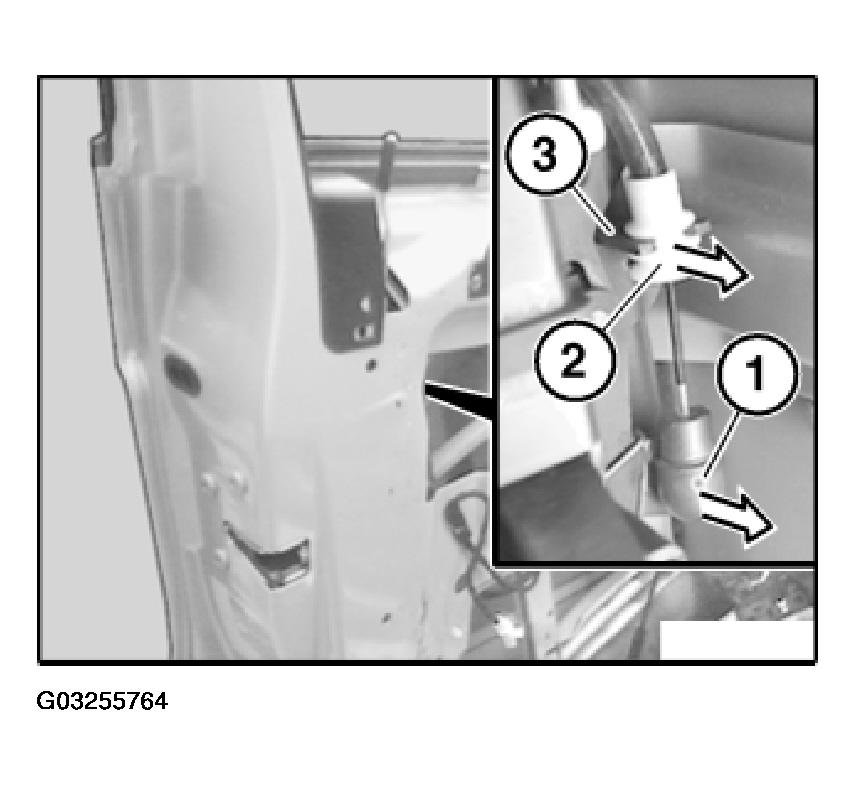

Fig 2: Disconnecting Bowden Cable On Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove door lock (2) with linkage (3).

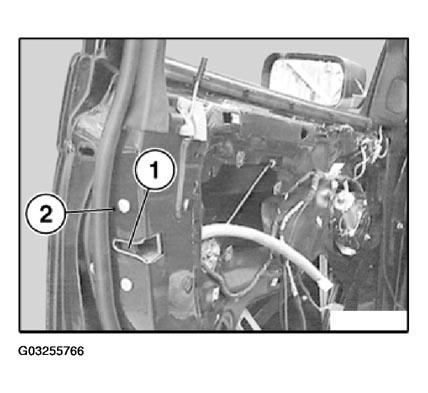

Fig 3: Removing Door Lock With Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert linkage for locking knob through opening in inner door plate.

Do not bend linkage (3).

Replace screws (1).

Tightening torque, refer to 51 21 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Installation:

Carry out function check only with door open.

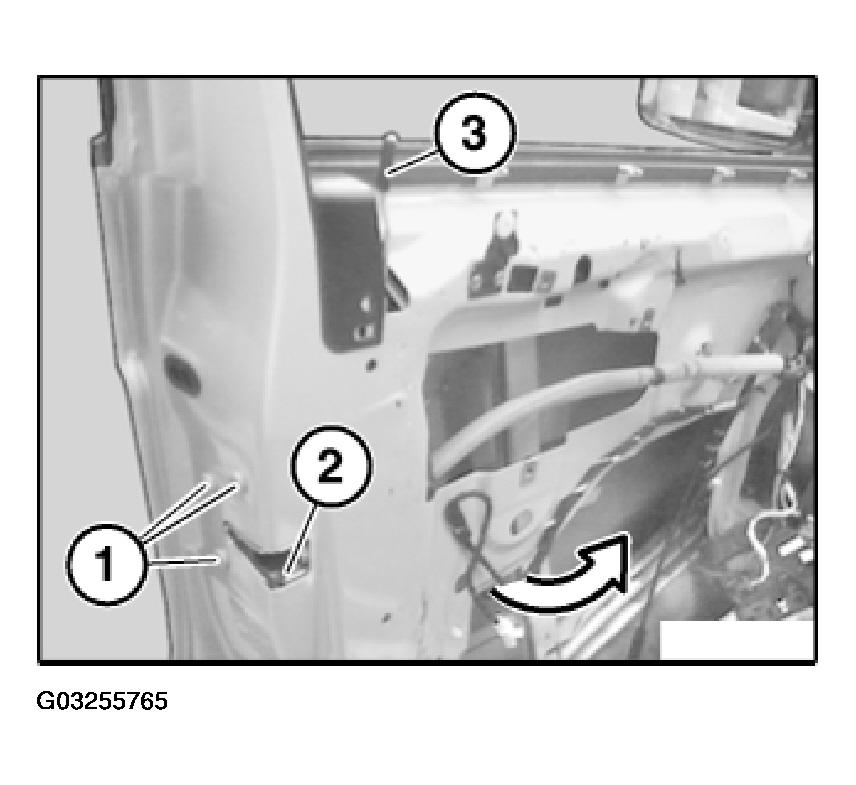

Fig 4: Testing Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

• Close rotary latch lock (1) with a screwdriver.
• Lock car with car key.
• Unlock car with car key.
• Open rotary latch lock (1) with outside door handle.
• If rotary latch lock (1) opens, then O.K.
• If rotary latch lock (1) fails to open a new lock actuator must be fitted.

Only replacement:

Lift out lock (1) and detach Bowden cable (2) from fixture (3).

Remove Bowden cable nipple (4) from lever (5).

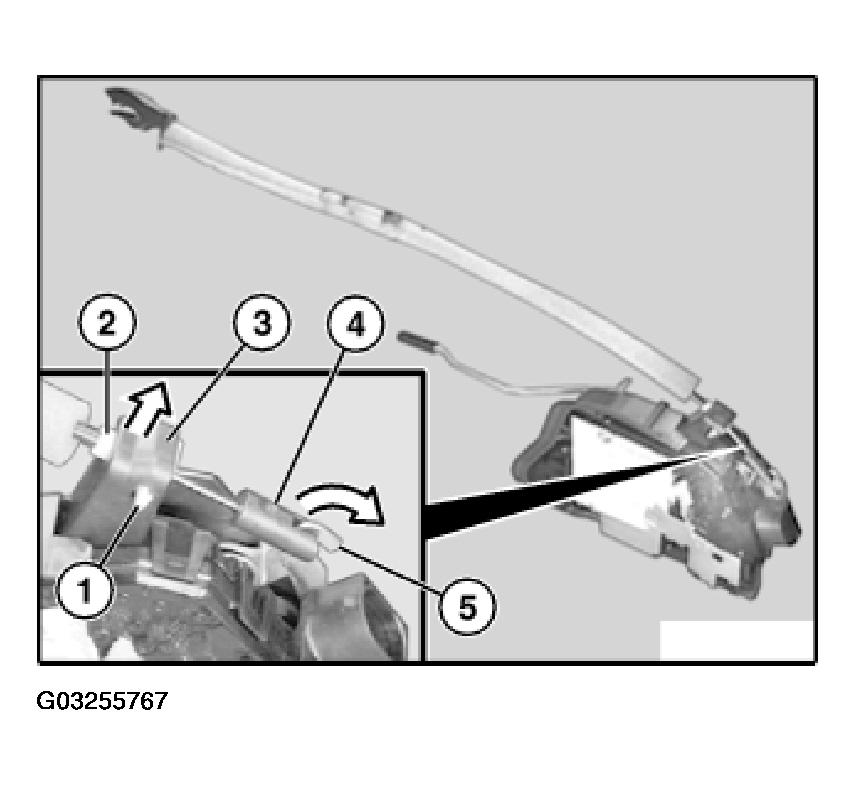

Fig 5: Removing Bowden Cable From Latch

Courtesy of BMW OF NORTH AMERICA, INC.

Only replacement:

Unclip linkage for locking knob (2) from support (1) and feed out of guide (3).

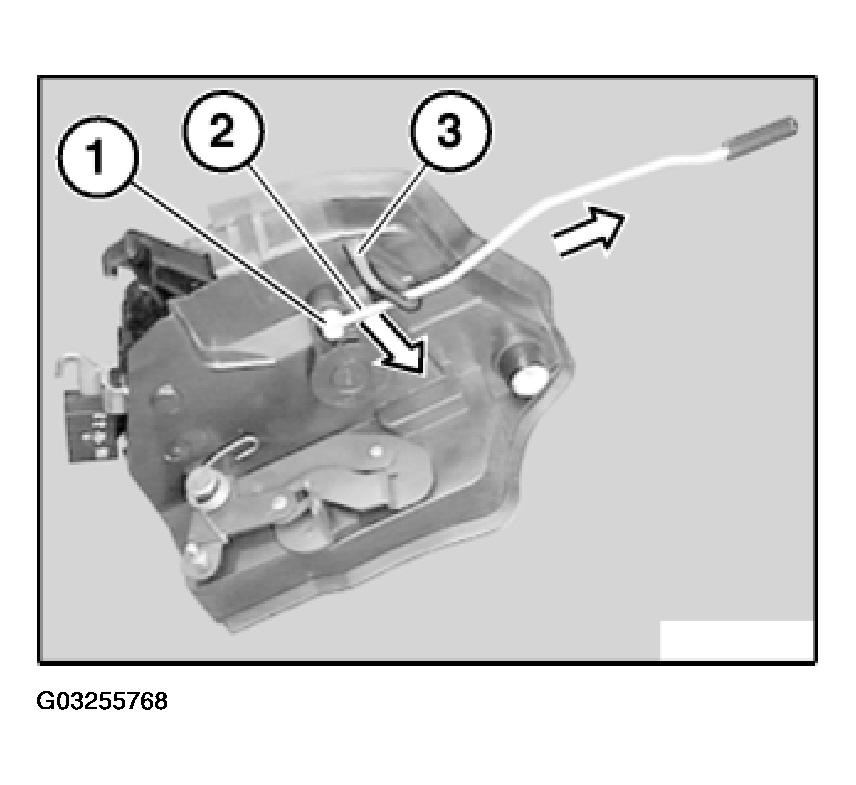

Fig 6: Removing Linkage For Locking Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged or missing:

1. Spring
2. Mount For Bowden Cable Of Inside Door Handle
3. Mount For Linkage Of Locking Knob
4. Mount For Paddle Of Lock Barrel (Driver's Side Only)

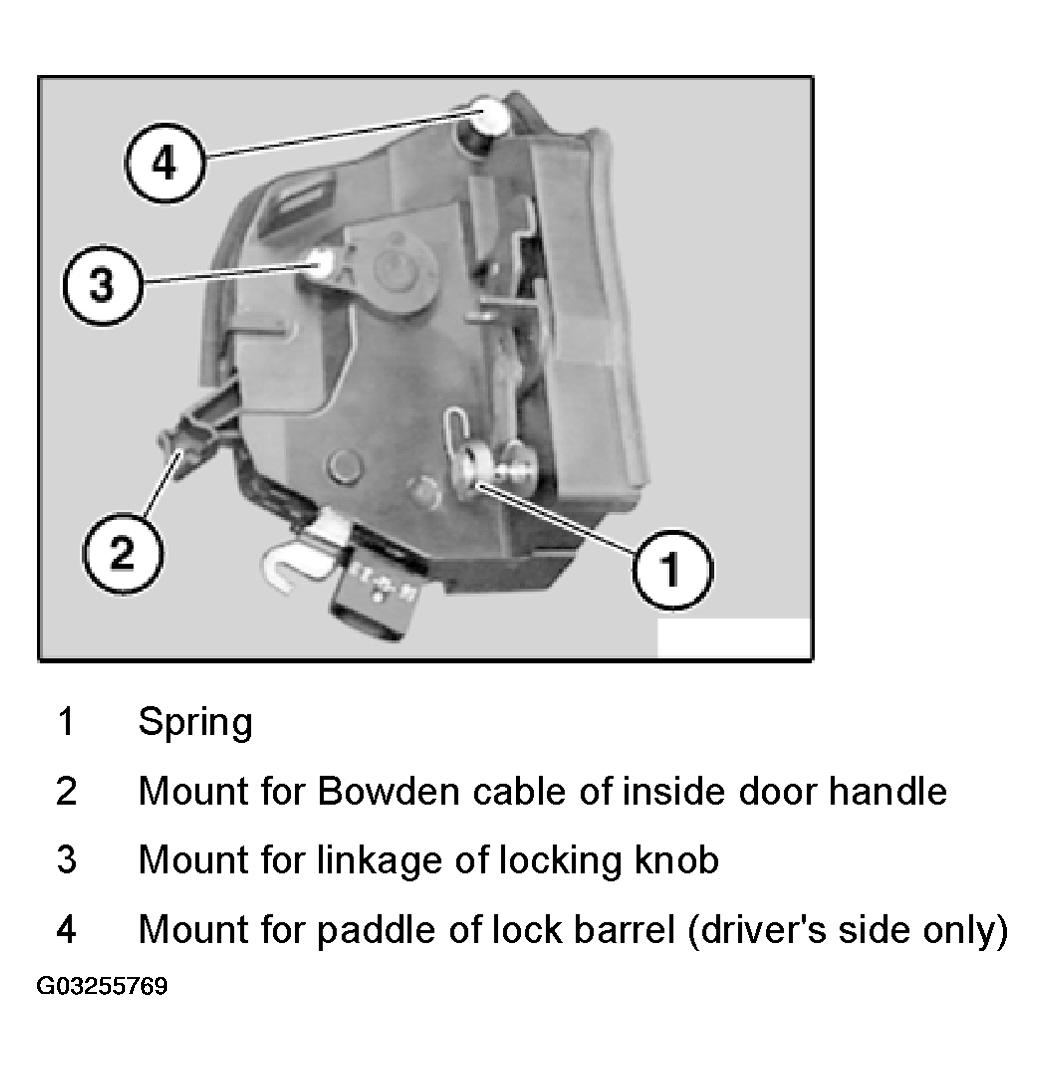

Fig 7: Ensure Listed Parts Are Not Damaged Or Missing

Courtesy of BMW OF NORTH AMERICA, INC.

The illustration shows the left driver's door lock.
