51 11 050 Removing and installing/replacing member (cross-member) for front bumper trim

WARNING: This page is about a different car, the 2003 BMW X5 and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove underride protection, refer to 51 71 378 REMOVING AND INSTALLING/REPLACING UNDERRIDE PROTECTION .

NOTE: The operation is described on the left side; proceed in the same way for the right side.

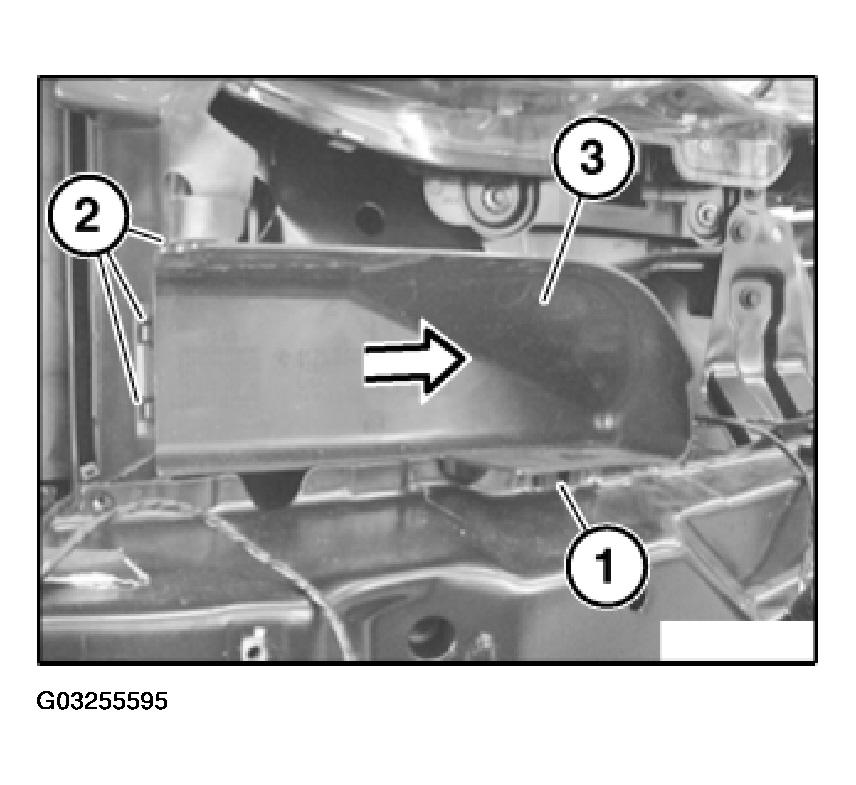

Lever lower trim (3) out of guide (1).

Unlock catches (2) and remove trim (3) in direction of arrow.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

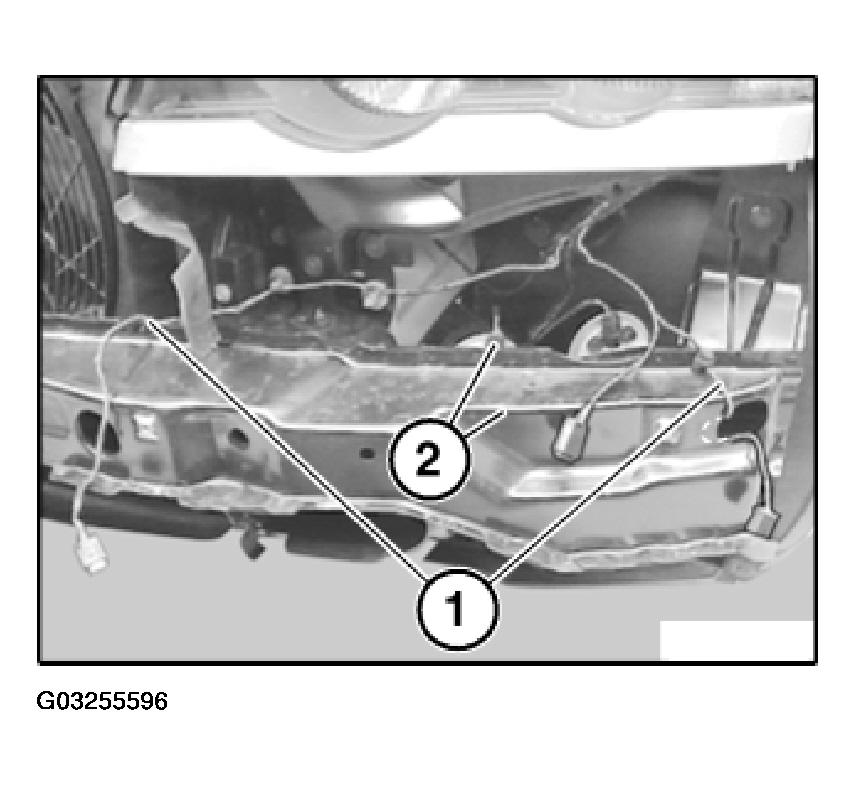

Release cable ties (1).

Disconnect plug connections (2) for fanfare horns.

Fig 2: Disconnecting Plug Connections For Fanfare Horns

Courtesy of BMW OF NORTH AMERICA, INC.

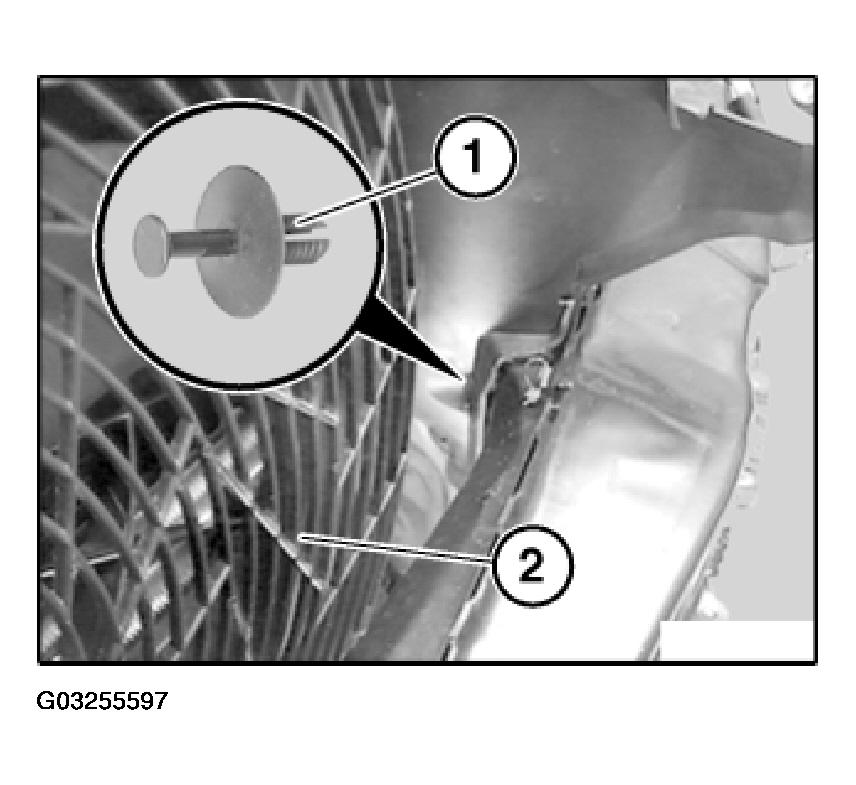

Release expander rivet (1) from fan impeller (2).

Fig 3: Releasing Expander Rivet From Fan Impeller

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For vertical adjustment, mark position of member (3).

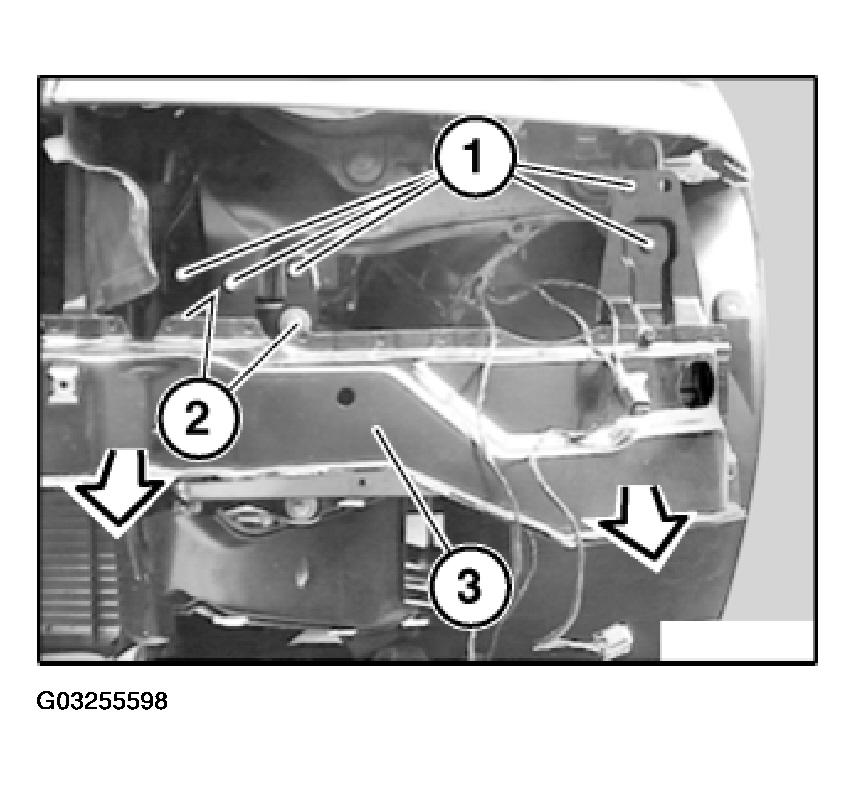

Fig 4: Moving Bumper Member Forward

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Release nuts (2) and remove member (3) towards front.

Installation:

Height adjustment = 4-6 mm.

Installation:

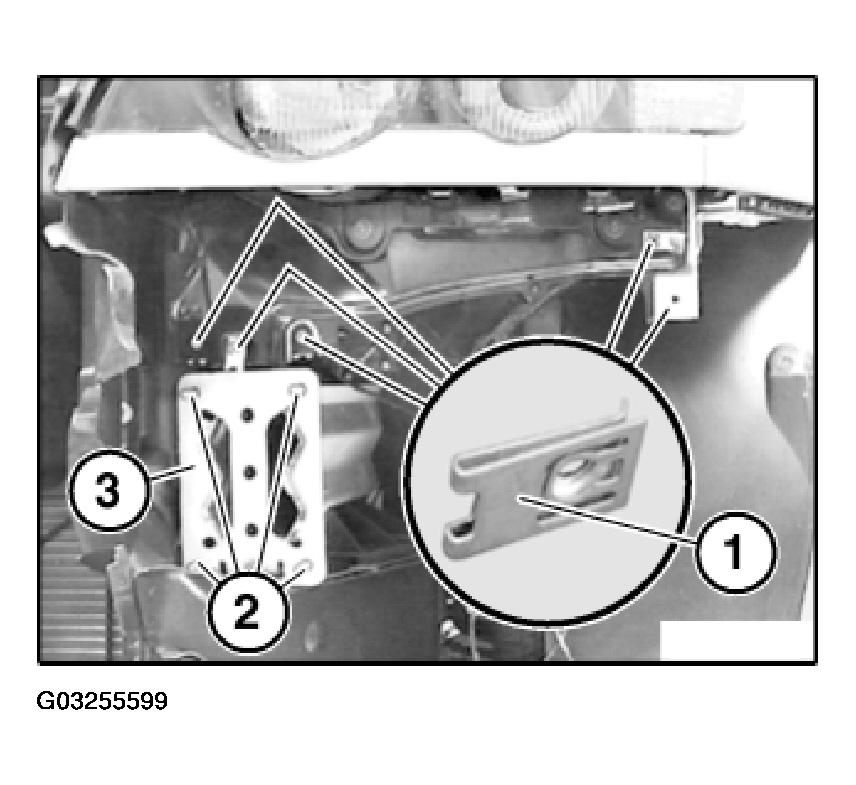

If necessary, replace faulty metal nuts (1).

Stud bolts (2) on member (3) must not be damaged.

Fig 5: Identifying Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

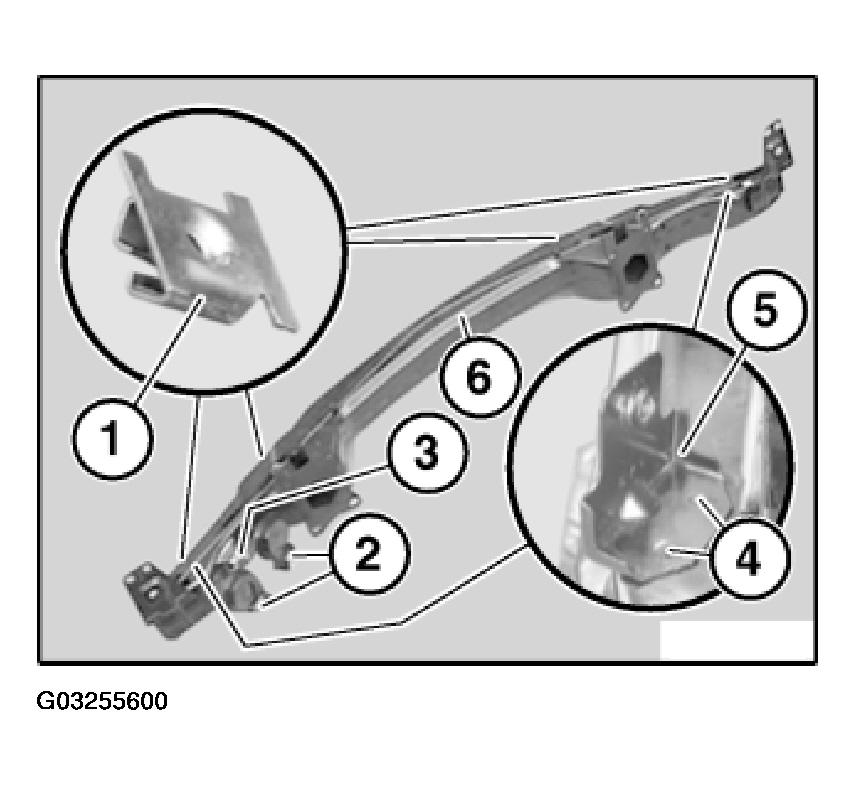

If necessary, replace faulty metal nuts (1) on member (6).

Replacement:

Release nut (3) and remove fanfare horns (2).

Version up to 10/03:

Release welding spots (4), remove holder (5) and protect bright metal plate against rusting.

Fig 6: Removing Bumper Member

Courtesy of BMW OF NORTH AMERICA, INC.
