67 61 505 Replacing electric motor with gearbox (front) for operation of slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove ROOF SWITCH CLUSTER

NOTE: Secure electric motor with gearbox (2) from falling out.

Release screws (1).

Tightening torque 54 13 1AZ .

NOTE: Screws (1) are microencapsulated and must be replaced.

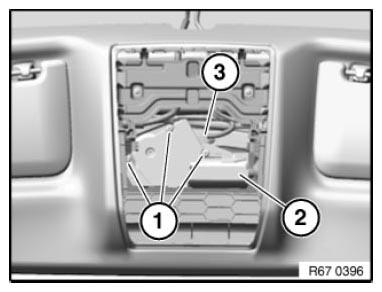

Fig 1: Identifying Electric Motor With Gearbox And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove electric motor with gearbox (2).

Unlock plug connection (3) and disconnect.

Installation note:

Insert gear (1) of electric motor with gearbox for operation of slide/tilt sunroof (2) exactly in gearing (3).

Fig 2: Inserting Gear Wheel Of Electric Motor With Gearbox

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Initialize SLIDE/TILT SUNROOF .
