51 24 300 Removing and installing or replacing (top) left or right gas pressurized prop for rear lid
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury!
Support rear lid in fully opened position with suitable apparatus.
Support rear lid in fully opened position with suitable apparatus.

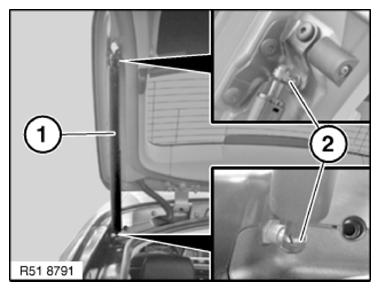

REMOVE ball sockets (2) from ball pins.
Detach gas pressurized prop (1).
