51 13 396 Removing and installing/replacing door post cover (outside B-pillar)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Prerequisite:

FRONT SIDE WINDOW correctly adjusted
REAR SIDE WINDOW correctly adjusted

Open both doors.

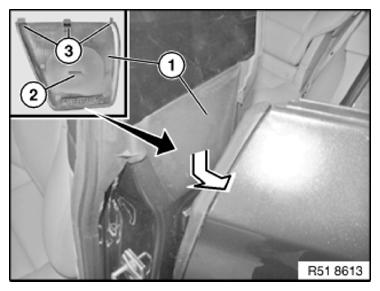

Raise cover plate (1) in bottom area, unclip hooks (2), and pull out fittings (3) towards bottom.

Fig 1: Unclipping Hooks

G09879006

Courtesy of BMW OF NORTH AMERICA, INC.

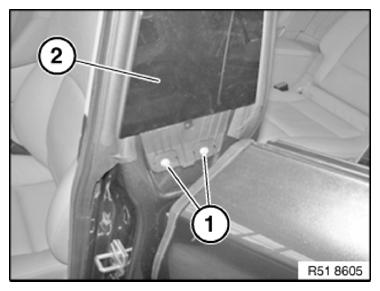

Release screws (1) on center cover (2).

Tightening torque 51 33 5AZ .

Fig 2: Identifying Screws On Center Cover

G09879007

Courtesy of BMW OF NORTH AMERICA, INC.

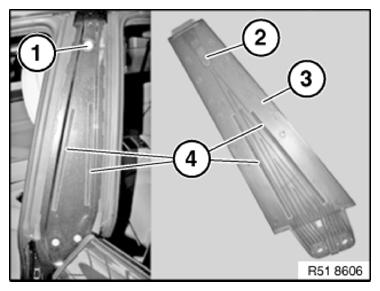

Release cover B-pillar (3) from Dual-Look (4) from bottom, from the bottom feed out clips (1) and guide (2).

Fig 3: Identifying Cover B-Pillar, Clips And Guide

G09879008

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

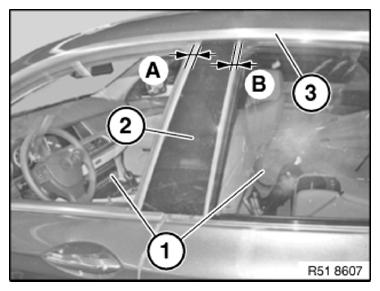

Visually inspect parallelism of cover (2) with respect to front and rear door window (1).

Dimensions of cover (2) with respect to door window glass (2):

A = 8 ± 1.3 mm

B= 8 ± 0.8 mm

Measuring point approx. 50 mm beneath roof strip (3).

Fig 4: Identifying Door Window Glass Dimensions Of Cover

G09879009

Courtesy of BMW OF NORTH AMERICA, INC.

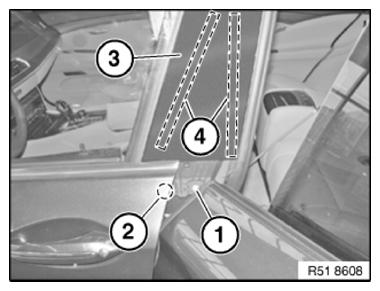

After adjustment, tighten screw (1).

Apply pressure to lock Dual-Look (4) onto cover (3).

Tighten screw (2).

Fig 5: Identifying Screw, Roof Strip And Cover

G09879010

Courtesy of BMW OF NORTH AMERICA, INC.
