51 13 061 Replacing wheel arch trim on front left or right side panel (Japanese national-market version)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

IMPORTANT:

For reasons of optimal adhesion, painting of bonding surfaces on the inside of the wheel arch trim is prohibited!
The application of the adhesive pad (double-sided adhesive tape) onto the wheel arch trim must therefore occur prior to painting the wheel arch trim!

Wheel arch trim
adhesive pad

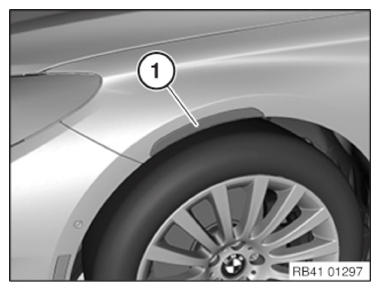

Fig 1: Identifying Wheel Arch Trim And Adhesive Pad
Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Carefully heat the wheel arch trim (1) with a hot air blower (temperature approx. 40-55 ° C) and pull off.

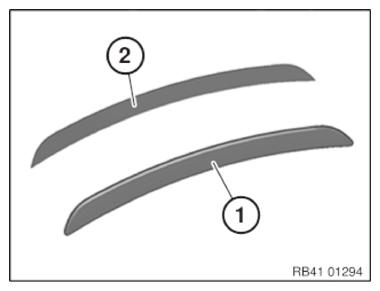

Fig 2: Identifying Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull protective film off adhesive pad (double-sided adhesive tape).

Attach wheel arch trim (1) to side wall according to specified dimensions and press down firmly.

Measurement a = approx. 22 mm.

Measurement b = approx. 2, 9 mm

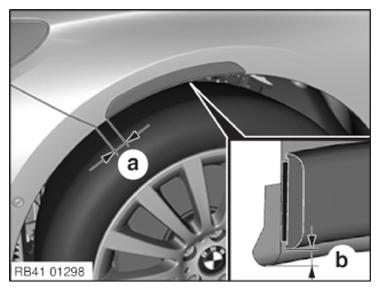

Fig 3: Identifying Attach Wheel Arch Trim To Side Wall Dimensions
