51 49 027 Removing and installing/replacing all trim for rear lid (central trim)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR REAR WINDOW FRAME ON LEFT AND RIGHT
Remove TRIM PANEL FOR REAR LID, SIDE LEFT AND RIGHT
Remove REAR LID STORAGE SHELF part way

Release screws (3) and clips (2) and remove trim panel (1). Tightening torque: 51 49 5AZ

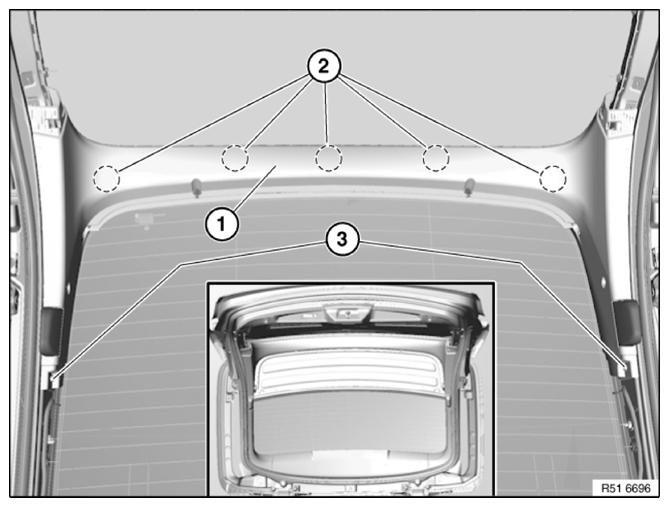

Fig 1: Identifying Trim Panel Screws And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Holders (2) on trim panel (1) must not be damaged.

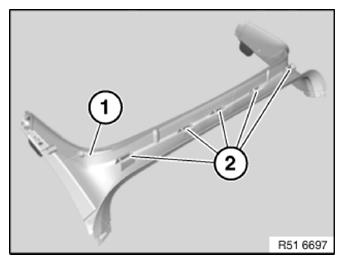

Fig 2: Identifying Holders On Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
