51 49 020 Removing and installing/replacing trim for rear lid, top

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release trim panel (1) at retainers (2).

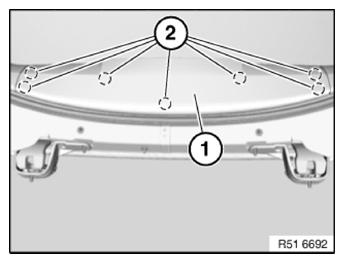

Fig 1: Identifying Trim Panel At Retainers
G09879698Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catch (2) on trim panel (1) must not be damaged.

If necessary, replace faulty retainers (3).

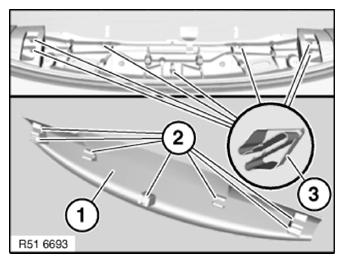

Fig 2: Identifying Catch On Trim Panel And Retainer
G09879699Courtesy of BMW OF NORTH AMERICA, INC.
